Kia Sorento: Interior A - Body Dimensions - Body (Interior and Exterior) - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Interior A

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior A

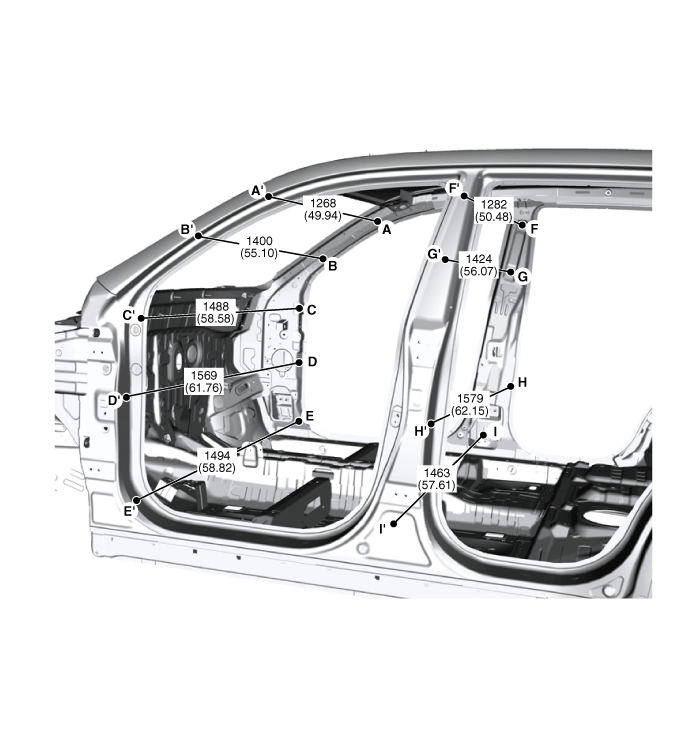

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
