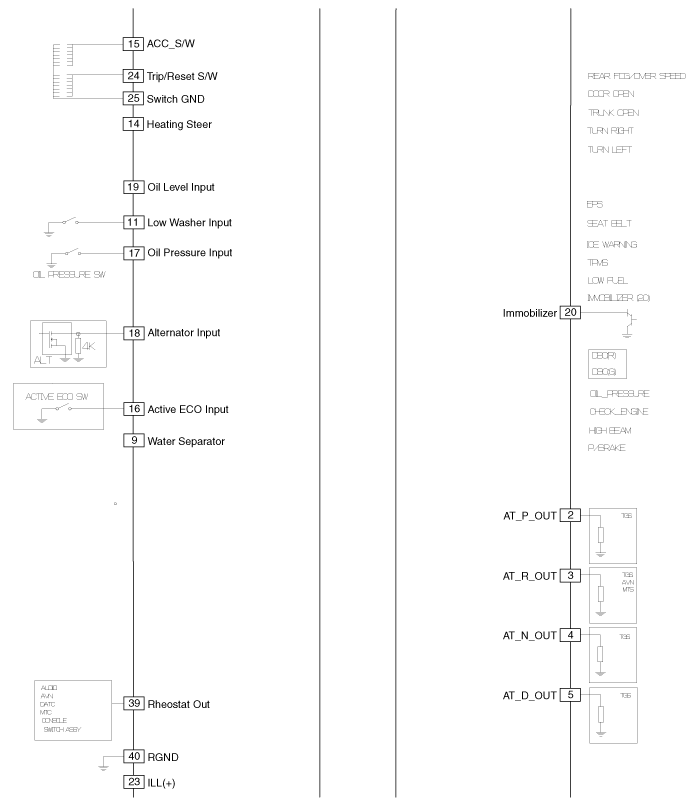

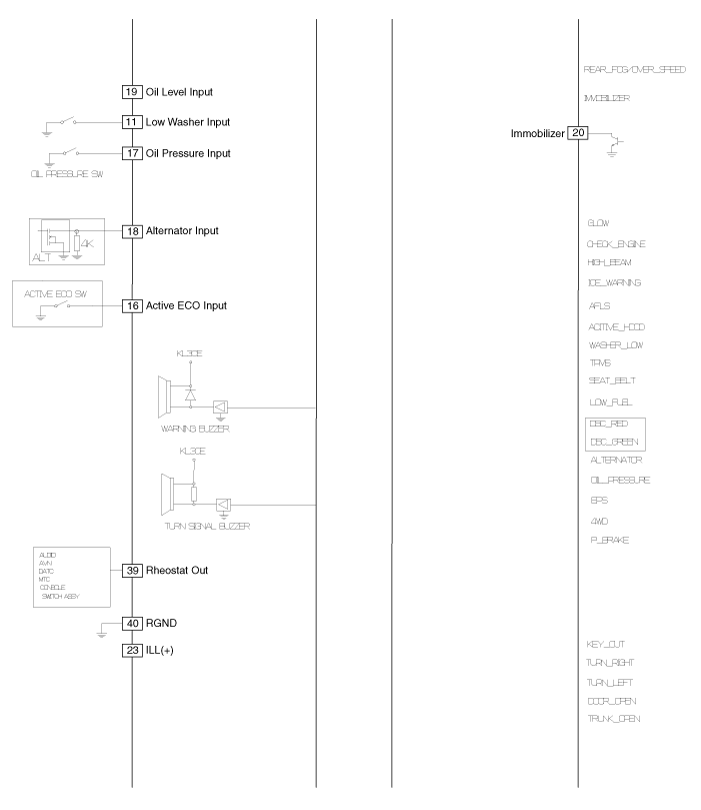

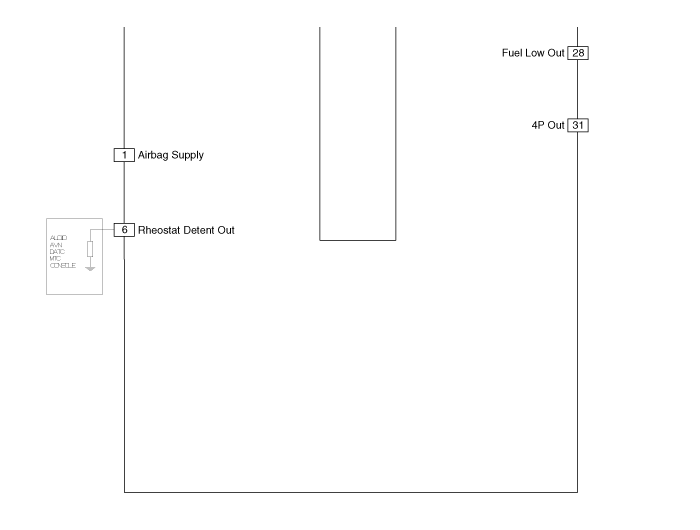

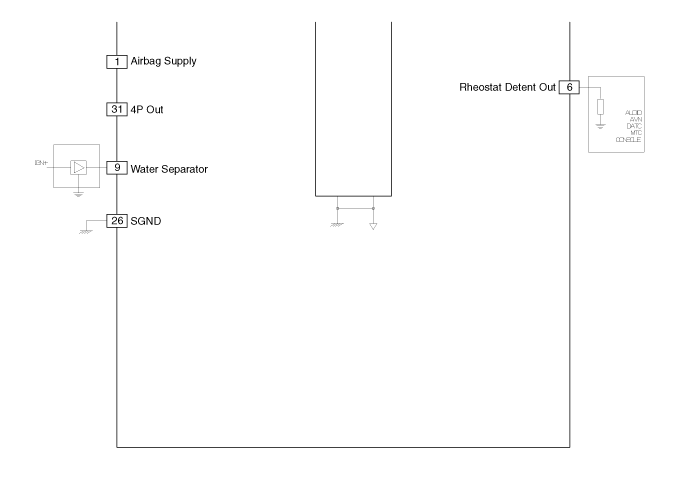

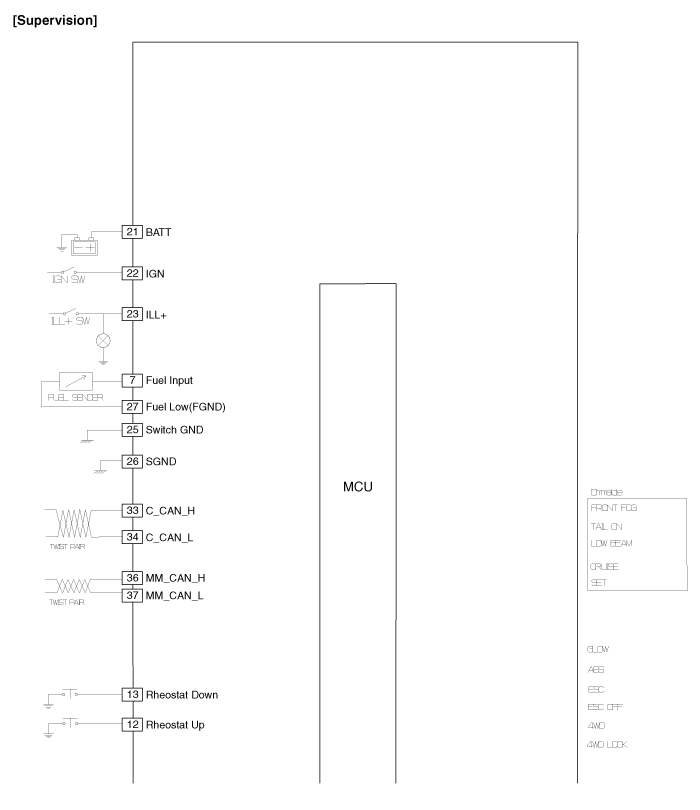

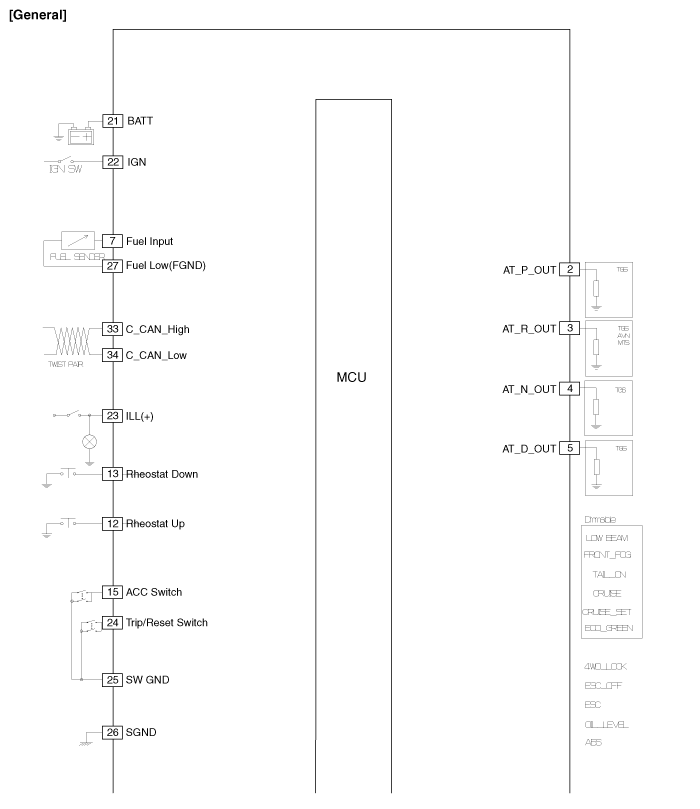

Instrument Cluster Components
Connector Pin Information Pin No. Description Pin No. Description 1 Airbag supply 21 Battery 2 P (AT) ...

Instrument Cluster Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the cluster fascia panel (A). (Refer to Body - "Crash pad") ...
