Diagnosis With GDS
1.
It will be able to diagnose defects of IPM with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.

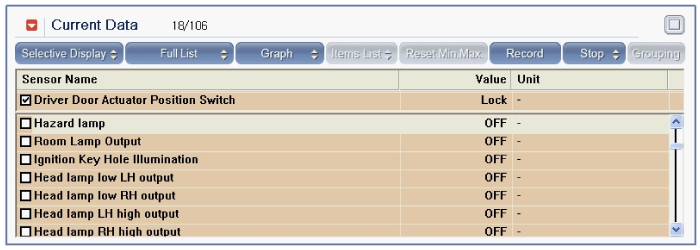

Select "Current data", if you will check current data of hazard switch.

3.

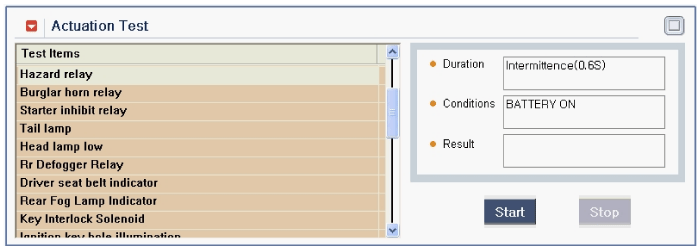

If you will check the hazard switch operation forcefully, select "Actuation test".
