Kia Sorento: Front Disc Brake Components - Brake System - Brake System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Front Disc Brake Components

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Brake System / Brake System / Front Disc Brake Components

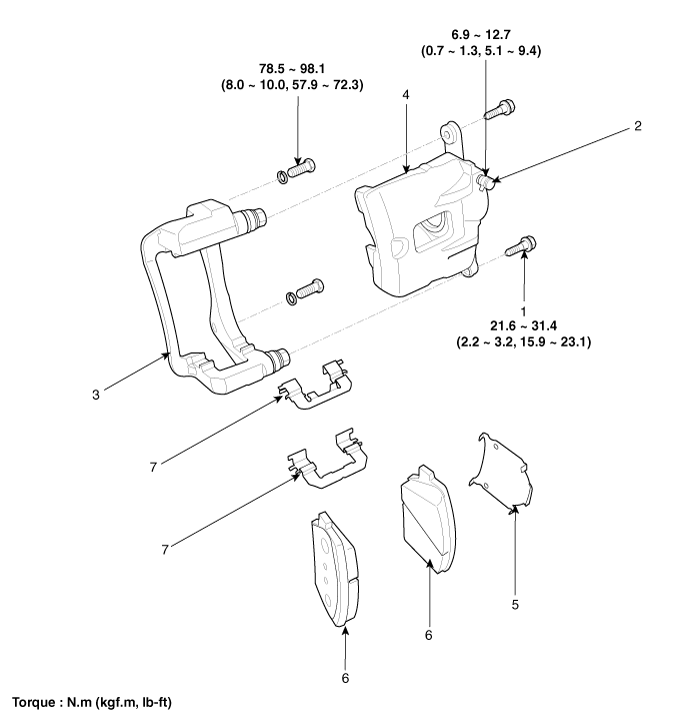

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

Brake Pedal Adjustment
Brake Pedal Height and Free Play 1. Disconnect the stop lamp switch connector (A) and loosen the stop lamp switch lock nut. 2. ...

Front Disc Brake Removal
1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...
