Kia Sorento: Crash Pad Components - Exterior - Body (Interior and Exterior) - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Crash Pad Components

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Body (Interior and Exterior) / Exterior / Crash Pad Components

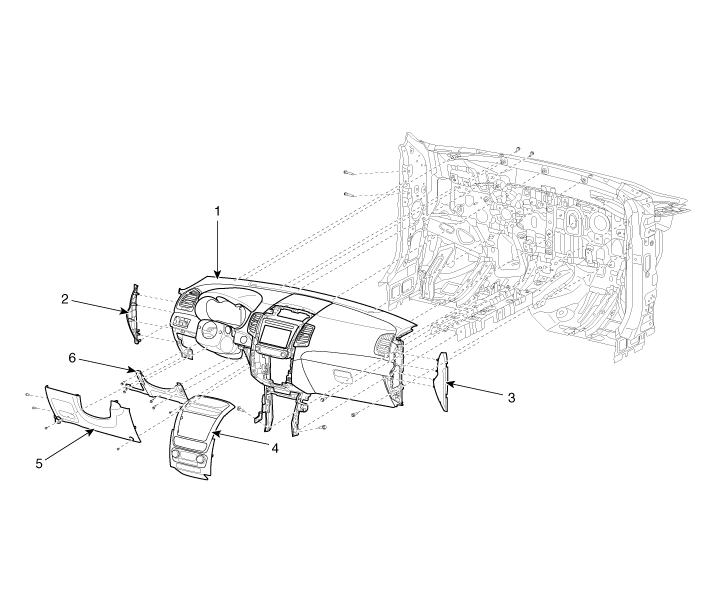

1. Main crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]
4. Center fascia panel
5. Crash pad lower panel
6. Reinforce panel

Console Replacement
Floor Console Assembly Replacement    Х Pry the trim off using a plastic trim tool and apply p ...

Crash Pad Replacement
Cluster Fascia Panel Replacement    Х Pry the trim off using a plastic trim tool and apply pro ...
