Kia Sorento: Front Bumper Components - Bumper - Body (Interior and Exterior) - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Front Bumper Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body (Interior and Exterior) / Bumper / Front Bumper Components

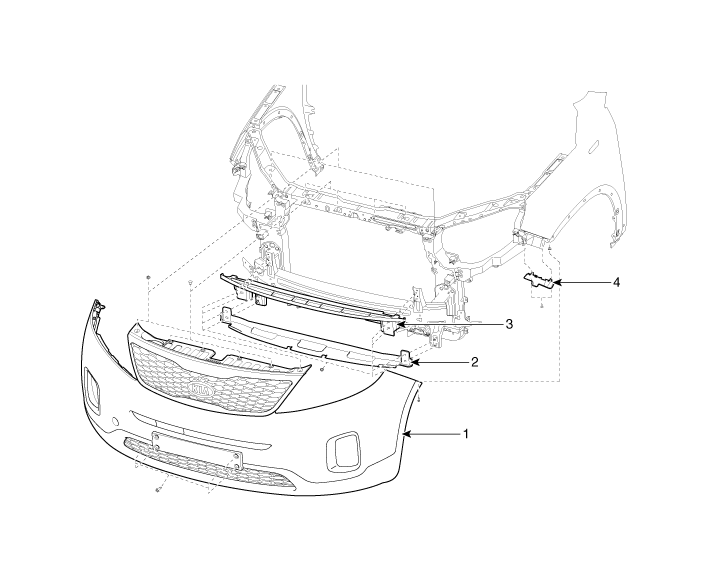

1. Front bumper cover
2. Front bumper lower stiffner
3. Front bumper upper stiffner
4. Front bumper side bracket

Bumper
...

Front Bumper Replacement
   • Pry the trim off using a plastic trim tool and apply protective tape around the relate ...
