Kia Sorento: Engine Control Module (ECM) Circuit Diagram - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Engine Control Module (ECM) Circuit Diagram

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Engine Control / Fuel System / Engine Control System / Engine Control Module (ECM) Circuit Diagram

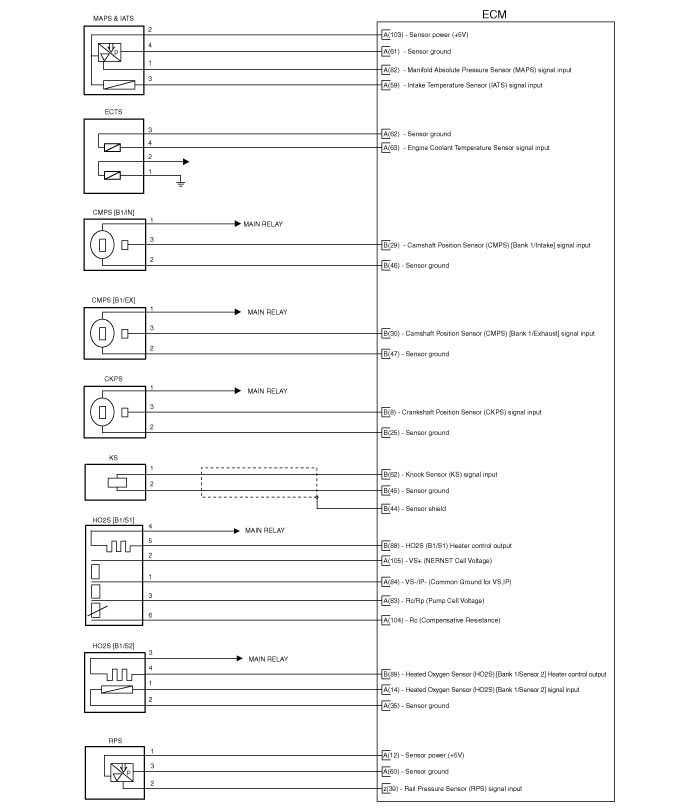

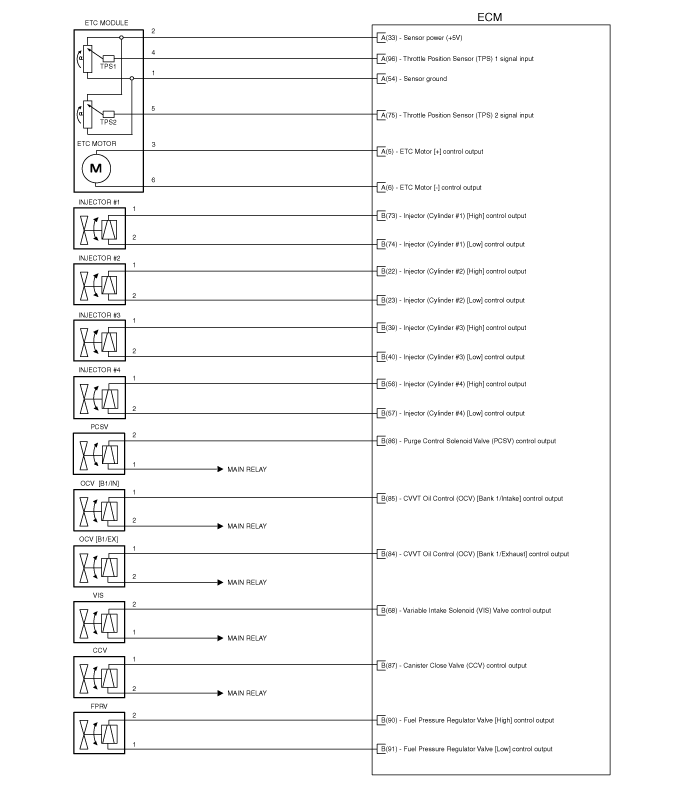

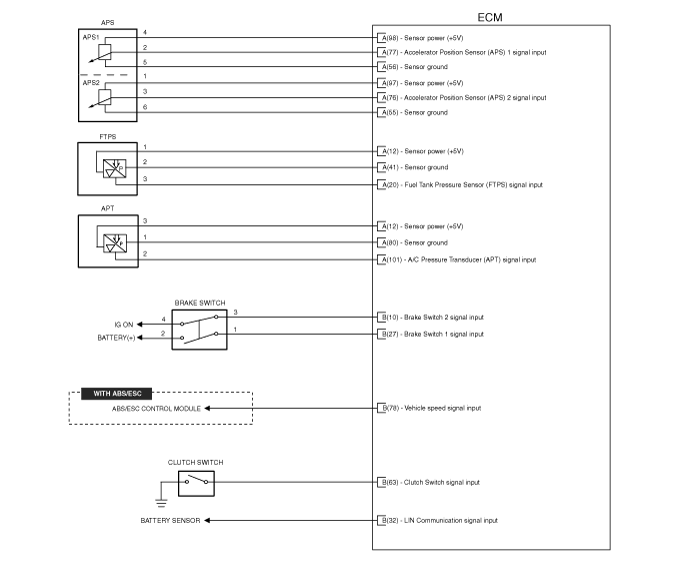

ECM Terminal And Input/Output signal
ECM Terminal Function Connector [C300-A] Pin No. Description Connected to 1 Ignition Coil (Cylinder #2) control output [NON-smart ke ...

Engine Control Module (ECM) Removal
1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the ECM Connector (A). ...
