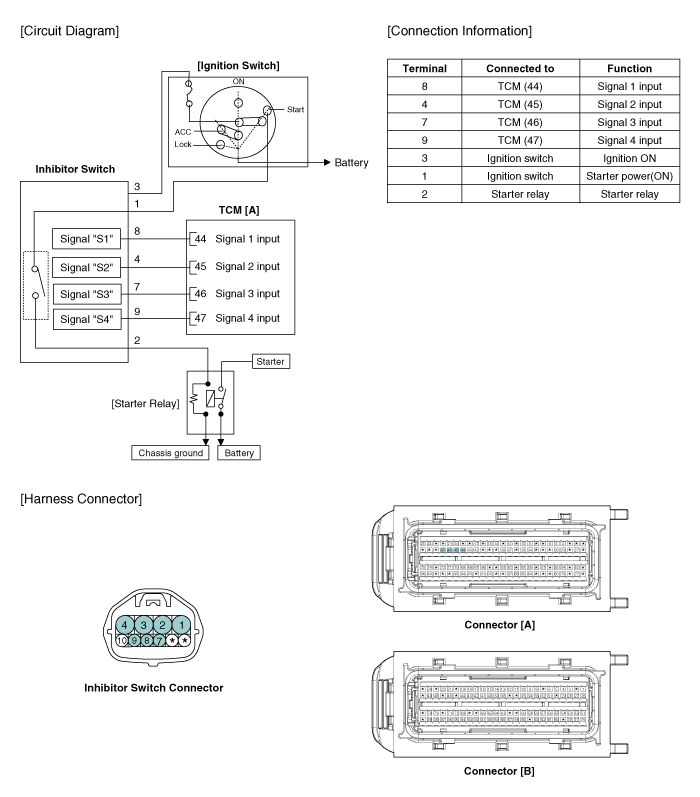

Kia Sorento: Circuit Diagram - Inhibitor Switch - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch / Circuit Diagram

Specifications
▷ Type: Combination of output signals from 4 terminals ▷ Specifications Power supply (V) 12 Output type Pin to Pin ▷ Signal ...

Inspection
   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contam ...
