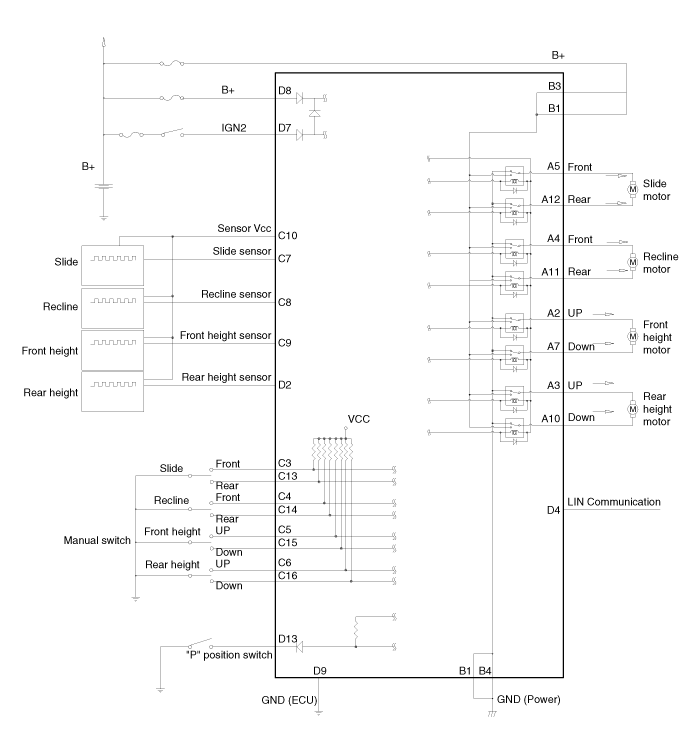

Kia Sorento: Circuit Diagram - IMS (Integrated Memory) - Body Electrical System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Body Electrical System / IMS (Integrated Memory) / Circuit Diagram

Component Location
1. Seat Memory Unit (IMS) 2. IMS control switch 3. Outside mirror 4. IMS mirror control (Driver power window switch) ...

Input/Output Specification
Connector Pin Lay Out IMS input/output pin information No Signal Name I/O Contents Remark A1 - - - ...
