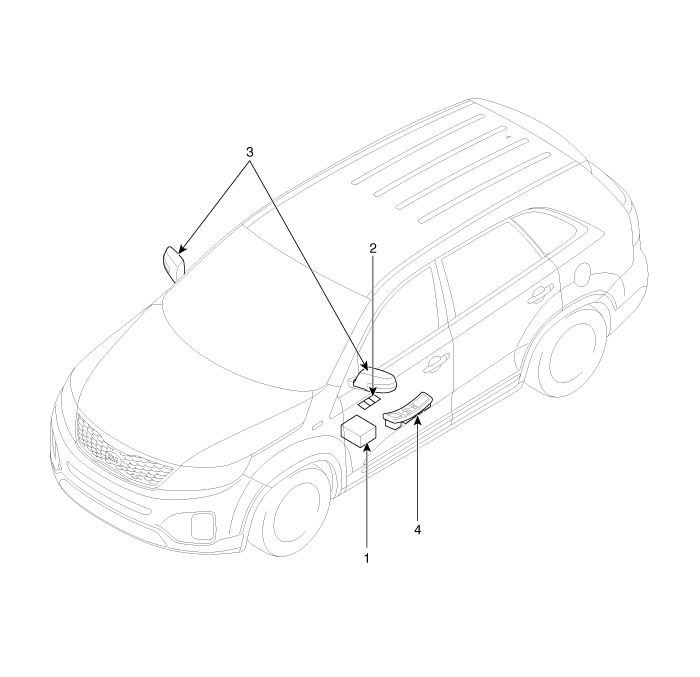

1. Seat Memory Unit (IMS)
2. IMS control switch
3. Outside mirror
4. IMS mirror control (Driver power window switch)

Specifications
Memory Power Seat Unit Item Specification Rating voltage DC 12V Operation voltage DC 9V ~ 16V Operation temperaure -30°C ~ ...

Circuit Diagram
...
