Kia Sorento: Warning Messages

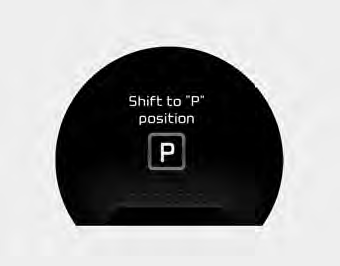

Shift to "P" position (for smart key system and automatic transaxle)
![](images/books/3/1/page.h16.gif)
- This warning message illuminates if you try to turn off the engine without
the shift lever in P (Park) position.
- At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop Button once more, it will turn to the ON position).

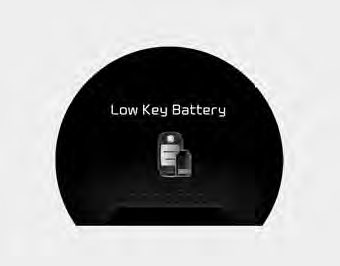

Low Key Battery (for smart key system)
![This warning message illuminates if the battery of the smart key is discharged](images/books/3/1/page.h17.gif)
This warning message illuminates if the battery of the smart key is discharged
when the Engine Start/Stop Button changes to the OFF position.

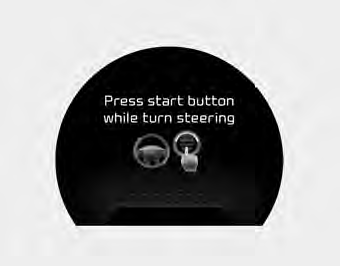

Press start button while turn steering (for smart key system)
![](images/books/3/1/page.h18.gif)
- This warning message illuminates if the steering wheel does not unlock normally
when the Engine Start/Stop Button is pressed.
- It means that you should press the Engine Start/Stop Button while turning
the steering wheel right and left.

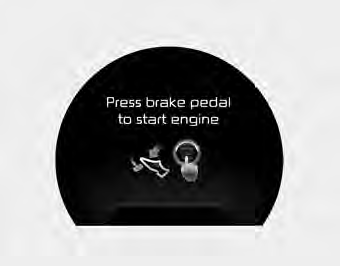

Press brake pedal to start engine (for smart key system and automatic transaxle)
![](images/books/3/1/page.h20.gif)
- This warning message illuminates if the Engine Start/Stop Button changes
to the ACC position twice by pressing the button repeatedly without depressing
the brake pedal.
- It means that you should depress the brake pedal to start the engine.

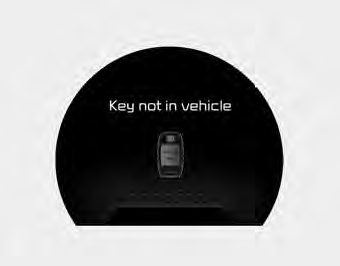

Key not in vehicle (for smart key system)
![](images/books/3/1/page.h21.gif)
- This warning message illuminates if the smart key is not in the vehicle
when you press the Engine Start/Stop Button.
- It means that you should always have the smart key with you.

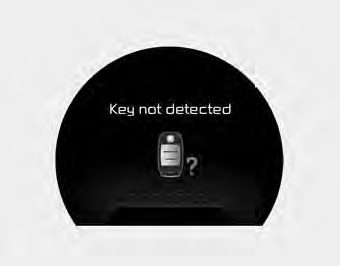

Key not detected (for smart key system)
![This warning message illuminates if the smart key is not detected when you press](images/books/3/1/page.h22.gif)
This warning message illuminates if the smart key is not detected when you press
the Engine Start/Stop Button.

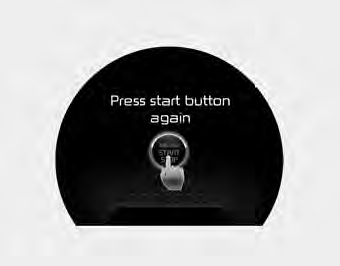

Press start button again (for smart key system)
![](images/books/3/1/page.h23.gif)
- This warning message illuminates if you can not operate the Engine Start/Stop
Button when there is a problem with the Engine Start/Stop Button system.
- It means that you could start the engine by pressing the Engine Start/ Stop
Button once more.
- If the warning illuminates each time you press the Engine Start/Stop Button,
have your vehicle inspected by an authorized Kia dealer.

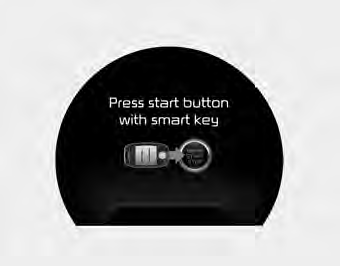

Press start button with smart key (for smart key system)
![](images/books/3/1/page.h24.gif)
- This warning message illuminates if you press the Engine Start/Stop Button
while the warning message “Key not detected” is illuminating.
- At this time, the immobilizer indicator light blinks.
Check fuse "BRAKE SWITCH" (for smart key system and automatic transaxle)
![](images/books/3/1/page.h25.gif)
- This warning message illuminates if the brake switch fuse is disconnected.
- It means that you should replace the fuse with a new one. If that is not
possible, you can start the engine by pressing the Engine Start/Stop Button
for 10 seconds in the ACC position.

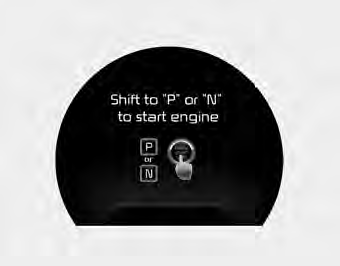

Shift to "P" or "N" to start engine (for smart key system
and automatic transaxle)
![This warning message illuminates if you try to start the engine with the](images/books/3/1/page.h26.gif)
This warning message illuminates if you try to start the engine with the
shift lever not in the P (Park) or N (Neutral) position.
✽ NOTICE
You can start the engine with the shift lever in the N (Neutral) position.
But, for your safety, we recommend that you start the engine with the shift lever
in the P (Park) position.

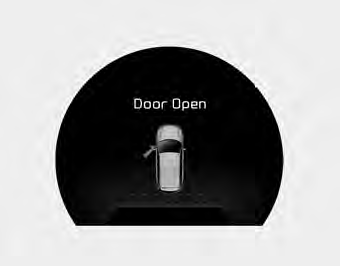

Door Open
![It means that any door is open.](images/books/3/1/page.h27.gif)
It means that any door is open.

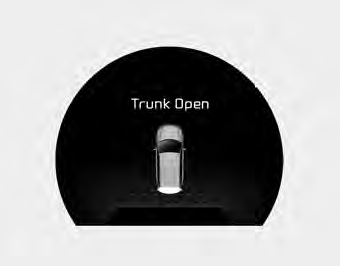

Trunk Open
![It means that the trunk is open.](images/books/3/1/page.h28.gif)
It means that the trunk is open.

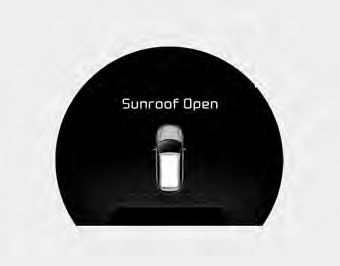

Sunroof Open (if equipped)
![The warning message illuminates if you turn off the engine and then open the](images/books/3/1/page.h29.gif)
The warning message illuminates if you turn off the engine and then open the
driver's door when the sunroof is open.

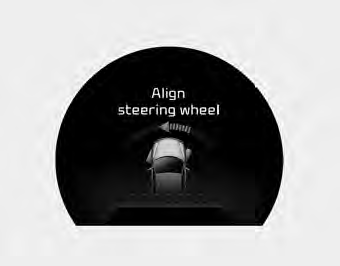

Align steering wheel (if equipped)
![](images/books/3/1/page.h30.gif)
- This warning message illuminates if you start the engine when the steering
wheel is turned to more than 90 degrees to the left or right.
- It means that you should turn the steering wheel and make the angle of the
steering wheel be less than 30 degrees.

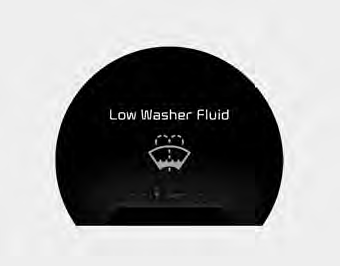

Low Washer Fluid (if equipped)
![](images/books/3/1/page.h31.gif)
- This warning message illuminates on the service reminder mode if the washer
fluid level in the reservoir is nearly empty.
- It means that you should refill the washer fluid.

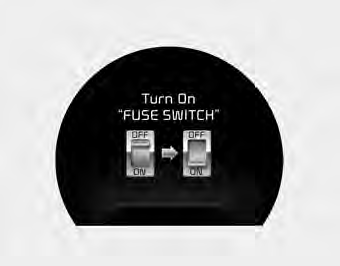

Turn on "FUSE SWITCH" (if equipped)
![](images/books/3/1/page.h32.gif)
- This warning message illuminates if the fuse switch on the fuse box is
OFF.
- It means that you should turn the fuse switch on.
