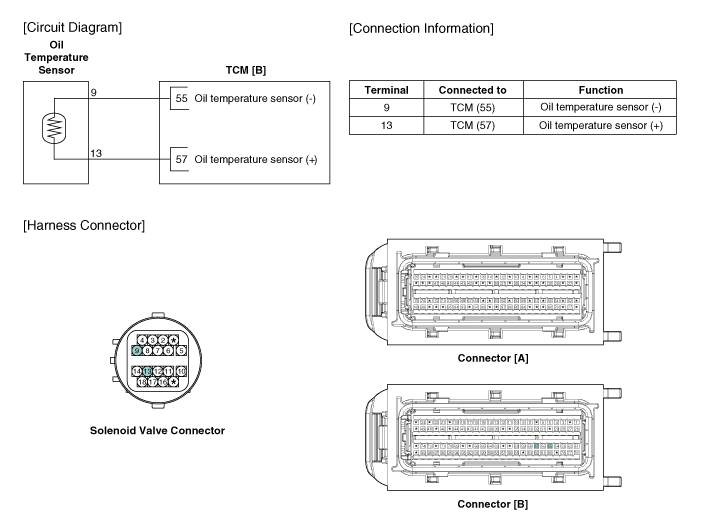

Kia Sorento: Transaxle Oil Temperature Sensor Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: Transaxle Oil Temperature Sensor Circuit Diagram

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Circuit Diagram

Transaxle Oil Temperature Sensor Specifications
▷ Type: Negative Thermal Coefficient Type(NTC) Temp.(°C)°F Resistance (kΩ) (-40)-40 48.1 (-20)-4.0 15.6 (0)32.0 ...

Transaxle Oil Temperature Sensor Inspection
1. Turn ignition switch OFF. 2. Remove the air duct. (Refer to Engine Mechanical System - "Air cleaner") ...
