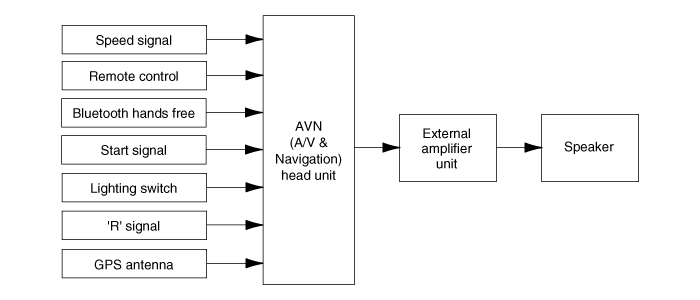

Kia Sorento: System Block Diagram - AVN System - Body Electrical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: System Block Diagram

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / AVN System / System Block Diagram

Components Location
1. AVN (A/V & Navigation) head unit 2. Tweeter speaker 3. External amplifier 4. Roof antenna (Radio+Sirius+GPS) 5. Front door speaker 6. Rear door speaker 7. Subwo ...

Description
Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work if hiding devices are pla ...
