Smart Key Code Saving
1.
Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

2.

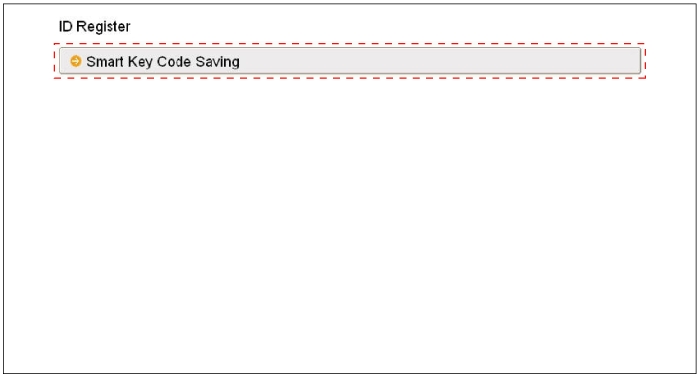

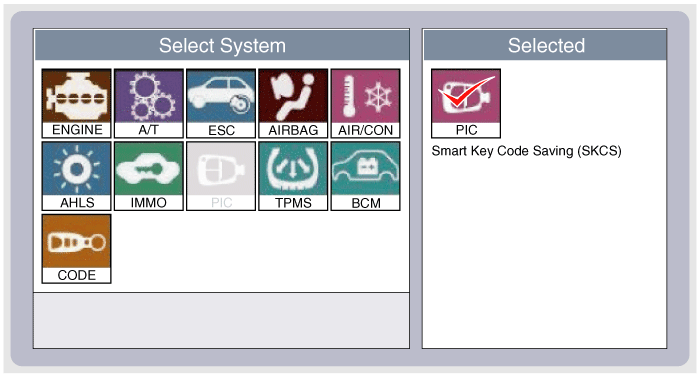

Select the vehicle model and then do "Smart key code saving".

3.

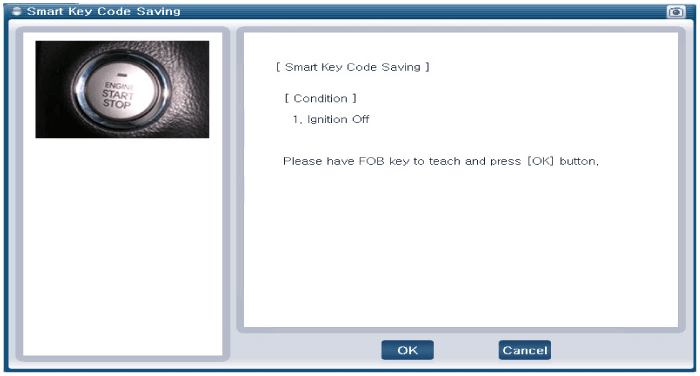

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

4.
After having the teaching smart key, push "ENTER" key.
5.

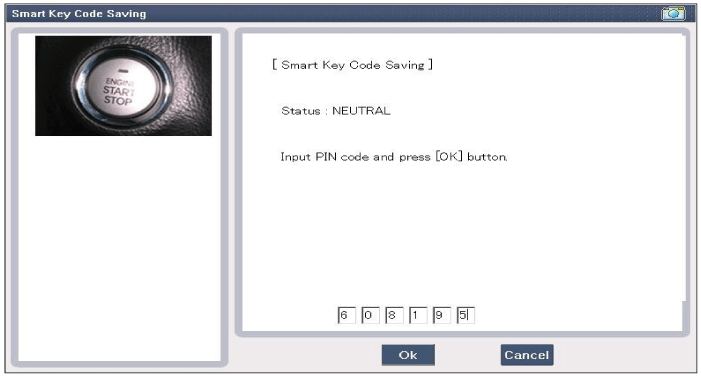

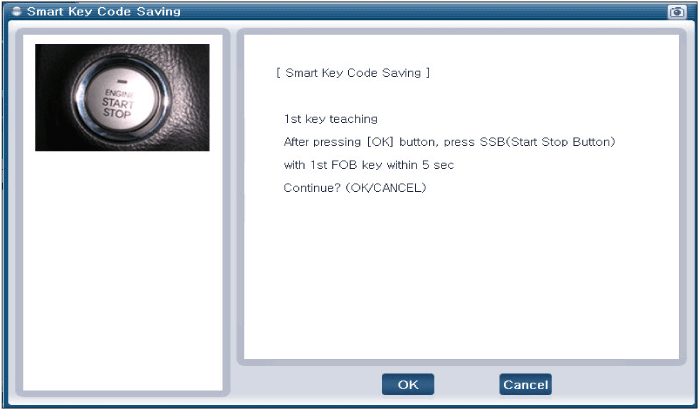

Input the "Pin code" for first key teaching.

6.

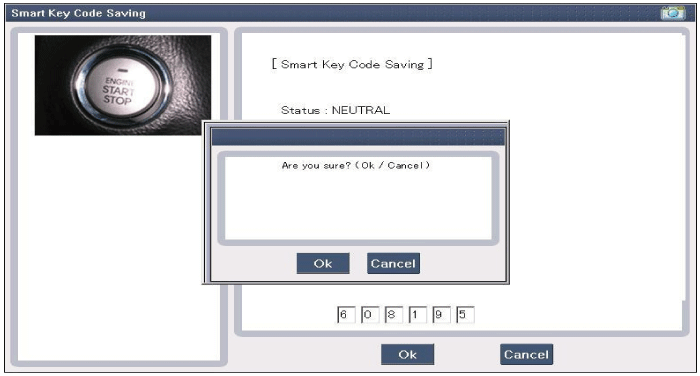

Press the SSB with smart key within 5 sec after pressing "OK".

7.

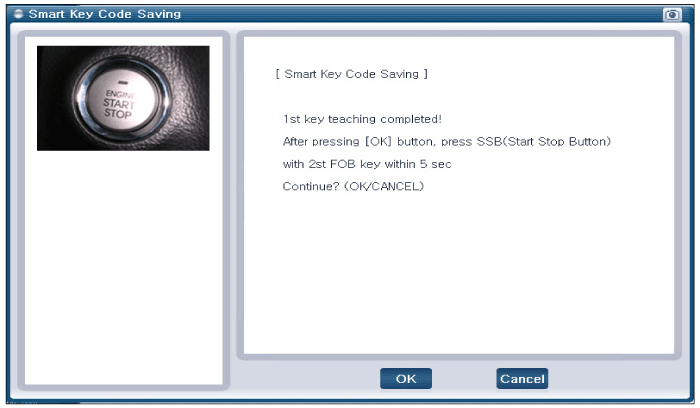

Confirm the message "First key teaching completed".

8.
Press the SSB with smart key within 5 sec after pressing "OK".

9.

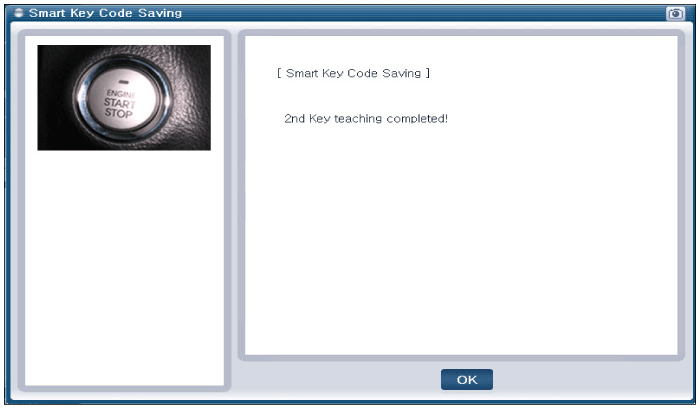

Confirm the message "Second key teaching completed".

10.

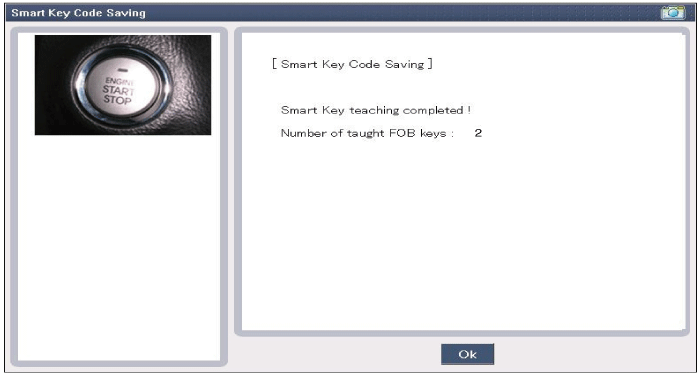

Then the screen will be shown as below when key teaching process is completed.
