Kia Sorento: Radiator Components - Cooling System - Engine Mechanical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: Radiator Components

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Engine Mechanical System / Cooling System / Radiator Components

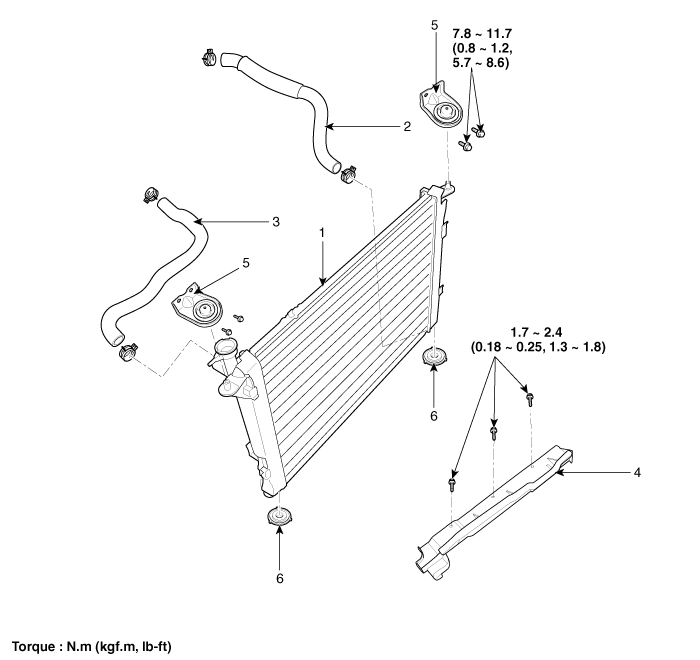

1. Radiator
2. Radiator lower hose
3. Radiator upper hose
4. Radiator upper air guard
5. Radiator upper mounting bracket
6. Radiator lower mounting insulator
