It will be able to diagnose defects of door lock with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |

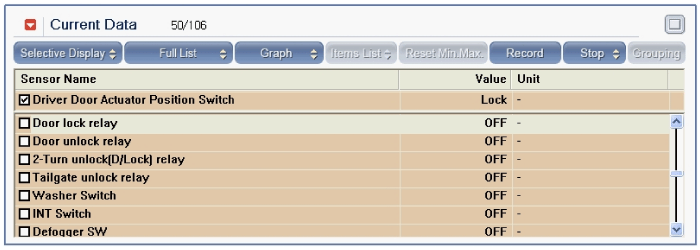

Select "Current data", if you will check current data of power
door lock system. It provides input/output status of IPM.
|
| 3. |

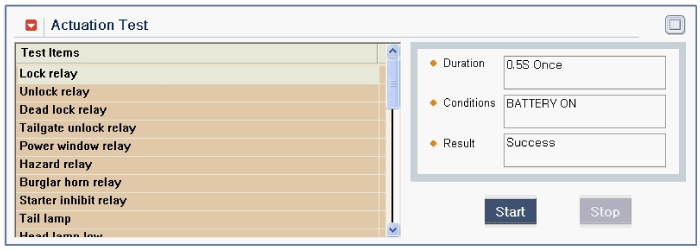

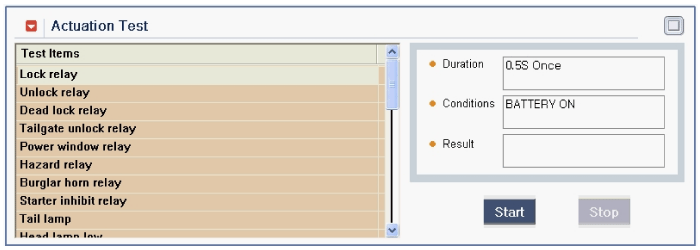

If you will check the power door lock operation forcefully, select
"Actuation test".
|
| 4. |
To check the DTC of the door lock, select "Diagnostic trouble
codes".
|
Power Door Lock Switch Installation
Driver Power Window Main Switch
1.
Install the driver power window switch assembly and connectors.
2.
Install the front door trim.
...
