Kia Sorento: Piston and Connecting Rod Components - Cylinder Block - Engine Mechanical System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: Piston and Connecting Rod Components

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Engine Mechanical System / Cylinder Block / Piston and Connecting Rod Components

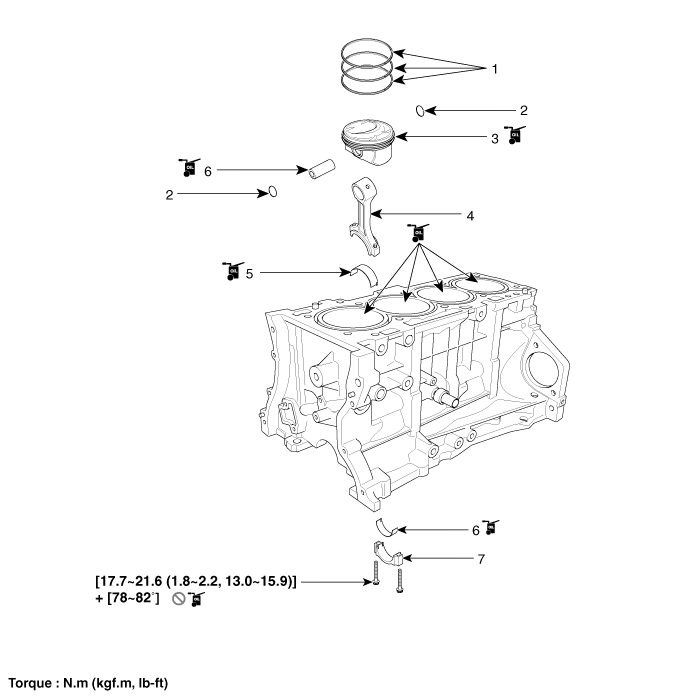

1. Piston ring
2. Snap ring
3. Piston
4. Connecting rod
5. Connecting rod upper bearing
6. Connecting rod lower bearing
7. Connecting rod bearing cap

Cylinder Block Reassembly
1. Install the oil jet (A). Tightening torque : 24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft) ...

Piston and Connecting Rod Disassembly
   Use fender covers to avoid damaging painted surfaces. ...
