Kia Sorento: Phone
Before using the Bluetooth® Wireless Technology phone features

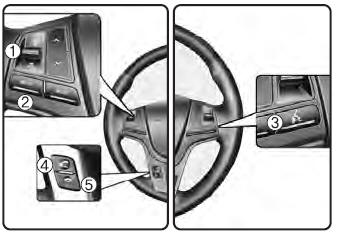

Making a call using the Steering-wheel mount controls

(1) VOLUME button :
Raises or lowers speaker volume.
(2) MUTE button :
Mute the microphone during a call.
(3)
button :
Activates voice recognition.
(4)
button
:
Places and transfers calls.
(5)
button
:
Ends calls or cancels functions.
Check call history and making call
➀ Shortly press (under 0.8 seconds) the
key on the steering
remote controller.
➁ The call history list will be displayed on the screen.
➂ Press the
key again to connect a call to the selected number.
Redialing the most recently called number
➀ Press and hold (over 0.8 seconds) the
key on the steering remote controller.
➁ The most recently called number is redialed.
