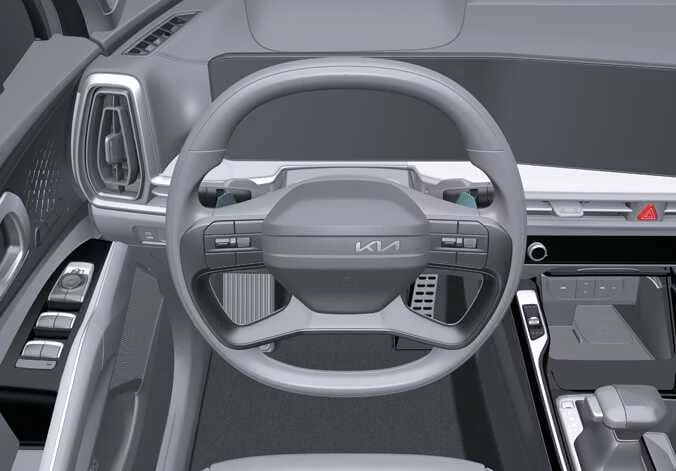

Kia Sorento: Paddle shifter: (if equipped)The steering-wheel-mounted paddle shift function is fully accessible whenever your Kia Sorento gear selector is positioned in either the standard D (Drive) mode or manual gate.
|
With the gear shift lever in D (Drive)
The paddle shifting capability becomes active once your Kia Sorento exceeds a forward speed of 6 mph (10 km/h).
Pull either the right (+) or left (-) paddle once to instantly execute an upward or downward gear change. This action seamlessly transitions the transmission control logic from standard automatic operation into temporary manual mode.
To return your Kia Sorento from manual shift control back to fully automatic operation, you can utilize any of the following convenient methods:
Hold the right (+) paddle shifter continuously pulled toward you for more than 1 second.
Momentarily shift the main gear selector from D (Drive) into the manual gate lane, then immediately push it back into the standard D position.
The transmission will also automatically revert from manual mode back to standard automatic operation under specific driving conditions:
When you apply light, steady pressure to the accelerator pedal for more than 6 continuous seconds while cruising.
Whenever you bring your Kia Sorento to a complete stop.
With the gear shift lever in manual mode
Pulling either the (+) or (-) paddle once while operating directly in the manual gate will command an immediate 1-step gear change.
TIP
Pulling both the left and right paddle shifters simultaneously is an invalid command and will be ignored by the transmission control module to prevent accidental mis-shifts.
