Detecting sensor(s)

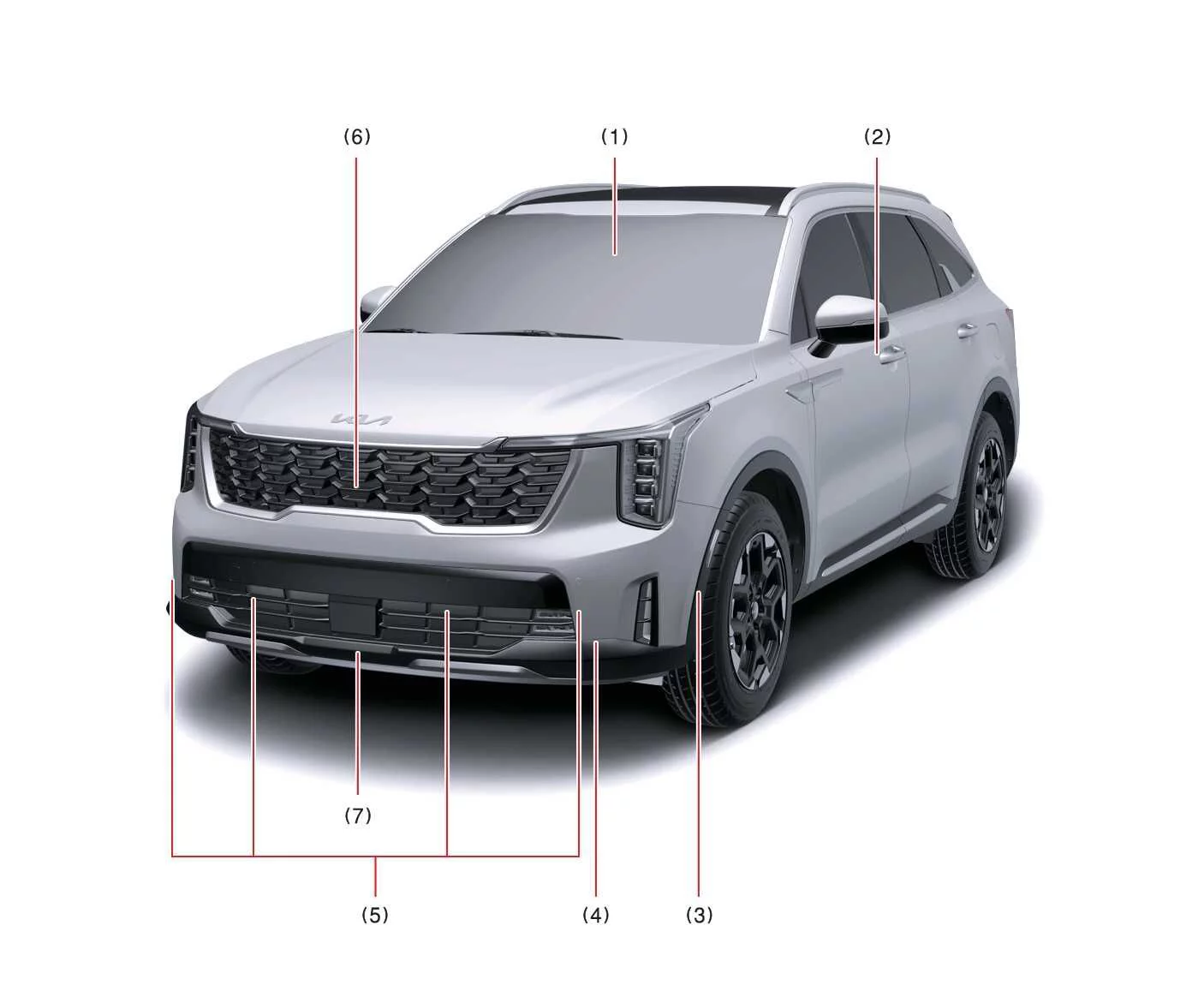

Figure 1. Front view of Kia Sorento sensor locations
Front view diagram highlighting sensor placements on the Kia Sorento bumper and windshield

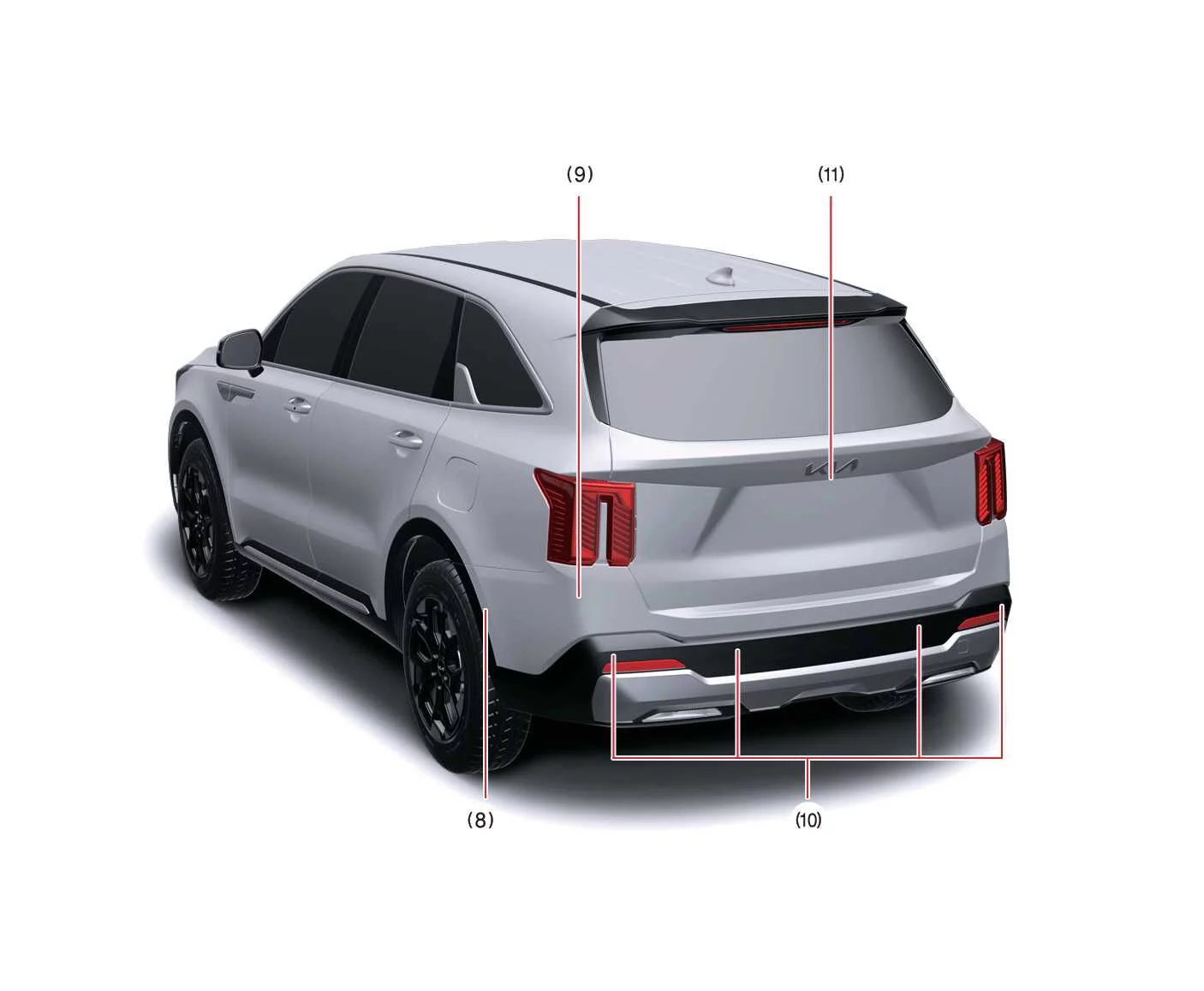

Figure 2. Rear view of Kia Sorento sensor locations
Rear view diagram illustrating sensor and camera locations on the Kia Sorento tailgate and rear bumper

Refer to the illustrations above for the specific integration points of the detecting sensors on your Kia Sorento.

*: if equipped
No Sensor Function
(1) Front view camera
  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*
  • Lane Keeping Assist (LKA)*
  • Intelligent Speed Limit Assist (ISLA)*
  • Driver Attention Warning (DAW)*
  • Smart Cruise Control (SCC)*
  • Lane Following Assist (LFA)*
  • Highway Driving Assist (HDA)*
(2) Wide-side view camera*
  • Blind-Spot View Monitor (BVM)*
  • Surround View Monitor (SVM)*
(3) Front side ultrasonic sensors*
  • Forward/Side/Reverse Parking Distance Warning (PDW)*
(4) Front corner radar*
  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*
  • Smart Cruise Control (SCC)*
  • Highway Driving Assist (HDA)*
(5) Front ultrasonic sensors
  • Forward/Reverse Parking Distance Warning (PDW)*
  • Forward/Side/Reverse Parking Distance Warning (PDW)*
(6) Wide-front view camera*
  • Surround View Monitor (SVM)*
(7) Front radar
  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*
  • Smart Cruise Control (SCC)*
  • Highway Driving Assist (HDA)*
(8) Rear side ultrasonic sensors*
  • Forward/Side/Reverse Parking Distance Warning (PDW)*
(9) Rear corner radar
  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*
  • Blind-Spot Collision-Avoidance Assist (BCA)*
  • Safe Exit Warning (SEW)*
  • Safe Exit Assist (SEA)*
  • Highway Driving Assist (HDA)*
  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*
(10) Rear ultrasonic sensors
  • Forward/Reverse Parking Distance Warning (PDW)*
  • Forward/Side/Reverse Parking Distance Warning (PDW)*
  • Reverse Parking Collision-Avoidance Assist (PCA)*
(11) Wide-rearview camera
  • Rear View Monitor (RVM)*
  • Surround View Monitor (SVM)*
  • Reverse Parking Collision-Avoidance Assist (PCA)*
