Kia Sorento: Overview
-

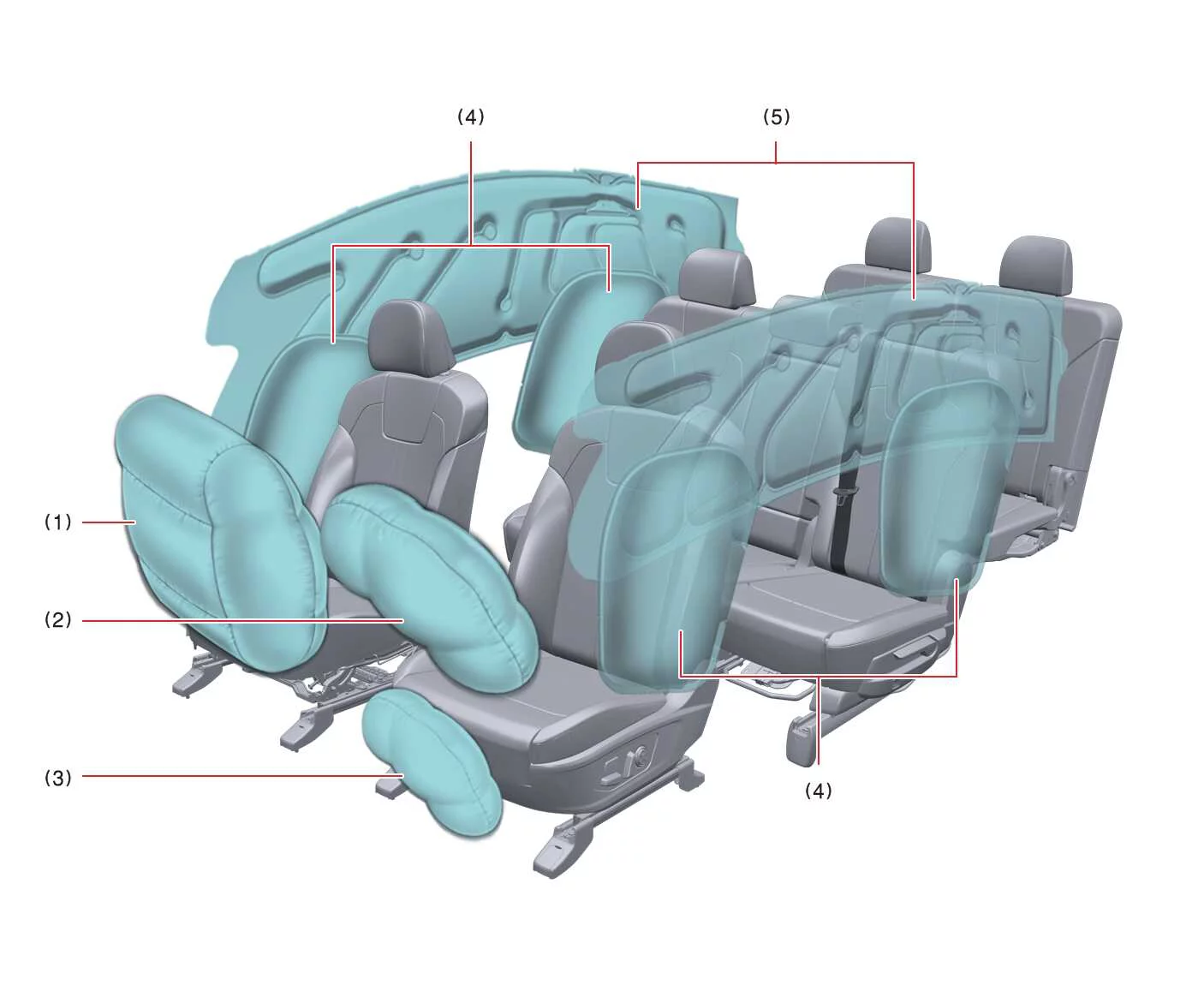

Front Passenger Airbag: Deploys from the upper dashboard assembly to protect the front occupant during significant frontal collisions.
-
Driver Front Airbag: Housed within the central steering wheel hub to shield the driver from direct steering column impact.
-
Driver Knee Airbag: Positioned beneath the lower steering column to reduce lower-limb impact energy and severe knee joint injury.
-
Side Thorax Airbags: Integrated into the outboard seatbacks to cushion the torso and pelvis from lateral collision forces.
-
Side Curtain Airbags: Extended along both roof rails above the side windows to deliver head protection across front and rear seating rows.
Even with advanced multi-stage supplemental restraints, the Supplemental Restraint System (SRS) in the Kia Sorento is designed as a secondary safety measure. All occupants must consistently buckle their three-point seat belts to minimize the risk of severe injury or ejection during high-impact collisions and vehicle rollovers.
Precautions
WARNING
To reduce the chance of serious or fatal injuries and receive the maximum safety benefit from your
restraint
system in the Kia ...
How does the air bag system operate?
Airbag modules remain primed whenever the ENGINE START/STOP button is set to the ON
position,
maintaining system readiness for approximately 3 minutes even af ...
