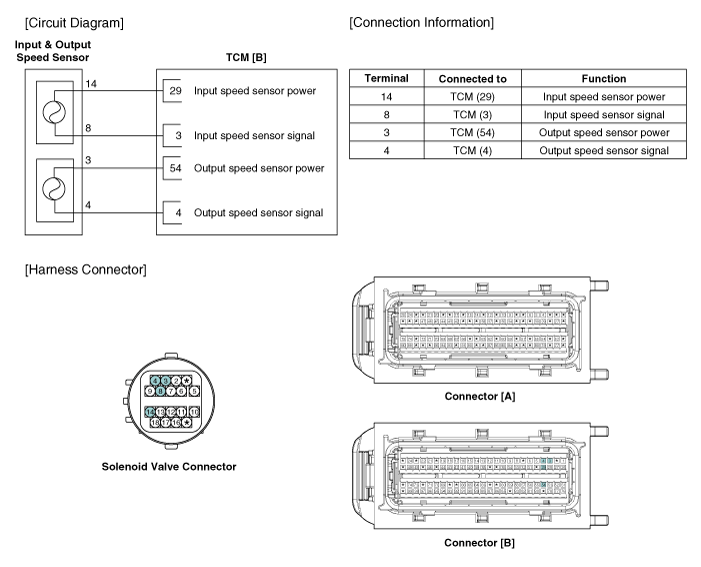

Kia Sorento: Output Speed Sensor Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: Output Speed Sensor Circuit Diagram

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Circuit Diagram

Output Speed Sensor Specifications
▷ Type: Hall effect sensor Operation condition (°C)°F ((-)40 ~ 150)) -40 ~ 302 Air gap(mm)in. (1.45~1.9) 0.0571~0.0748 Output voltage (V) ...

Output Speed Sensor Signal Waveform
...
