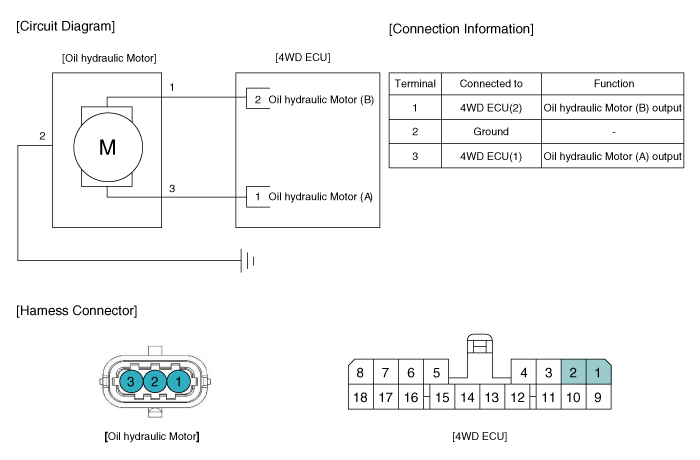

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator) Circuit Diagram

Oil hydraulic Motor(Actuator) Description
The 4WD ECM controls the Pump Motor Pump (Actuator) to generating an oil pressure. The pressure engages a multiple disk clutch to transfer torque to the rear wheels. The torque to the rear wh ...

Oil hydraulic Motor(Actuator) Inspection
   If you have trouble code related to the oil hydraulic motor (actuator), check oil hydraulic motor (actuator) according t ...
