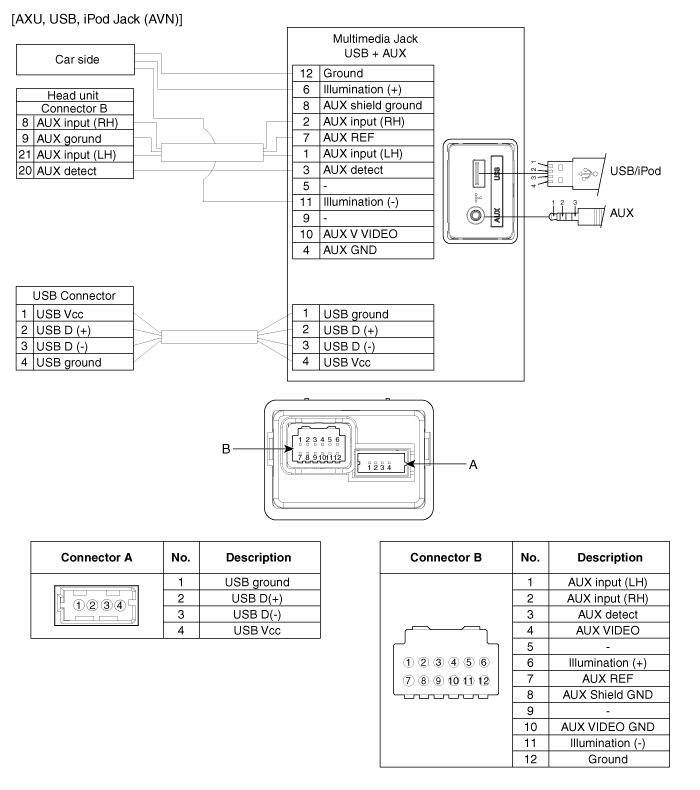

Kia Sorento: Multimedia Jack Circuit Diagram - AVN System - Body Electrical System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Multimedia Jack Circuit Diagram

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Body Electrical System / AVN System / Multimedia Jack Circuit Diagram

AVN Head Unit Installation
1. Connect the AVN head unit connectors and cable. 2. Install the AVN head unit. 3. Install the center air vent ...

Multimedia Jack Description
The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when ...
