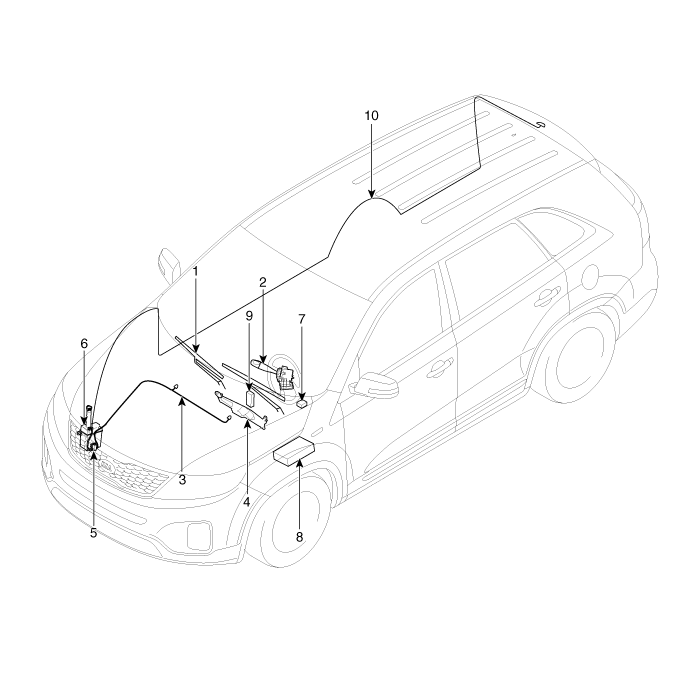

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Head lamp washer switch (Crash pad side garnish)
8. Front wiper relay (Engine room relay box)
9. Rear wiper relay (ICM relay box)
10. Rear washer hose & nozzle
