Kia Sorento: LCD display modes

The high-resolution LCD display in the Kia Sorento features 5 distinct operational modes designed to keep you informed. You can effortlessly switch between these layout views by pressing the dedicated Mode button.

Driving assist view

This mode displays the state of:

• Lane Keeping Assist

• Smart Cruise Control

• Lane Following Assist

• Tire pressure

For more details, refer to Driver assistance guide.

Navigation view

This mode displays the navigation state.

Utility information view

Low pressure warning display

(A) Low tire pressure

This warning message displays when the tire pressure is low and indicates which tire is low.

For more details, refer to Tire Pressure Monitoring System (TPMS).

Fuel economy

This information is always displayed at the bottom center of the Full LCD information cluster.

Average fuel economy Instant fuel economy

• Average fuel economy is calculated using the total driving distance and fuel consumption of the last trip.

  • Fuel economy range: 0–99.9 mpg or km/L, L/100 km

  TIP

  For more accurate calculation, the average fuel economy is not displayed if you do not drive the vehicle for more than 10 seconds or 0.03 miles (50 m) after you turn the ENGINE START/STOP button ON.

• This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 6.2 mph (10 km/h).

  • Fuel economy range: 0.0–50.0 mpg or 0.0–30 km/L, L/100 km

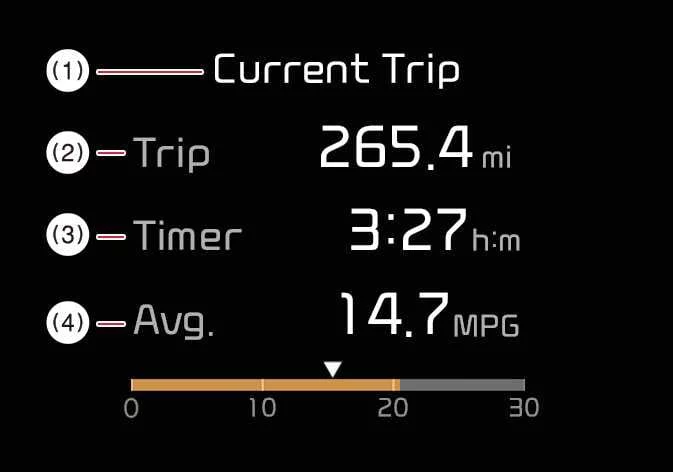

Drive Info display

The Drive Info display shows the trip distance, average fuel efficiency, and total driving time once per ignition cycle.

Current Trip Trip Timer Avg.

• After the vehicle runs for more than 0.19 miles (300 m), the Fuel efficiency is calculated.

• The information will automatically reset when the driver’s door is opened after the ignition is turned off, or approximately 3 minutes after the ignition is turned off.

• If you press the “OK” button for more than approximately 1 second after the driving information is displayed, the information will be reset.

• Information is accumulated when the engine is running, even if the vehicle is not in motion.

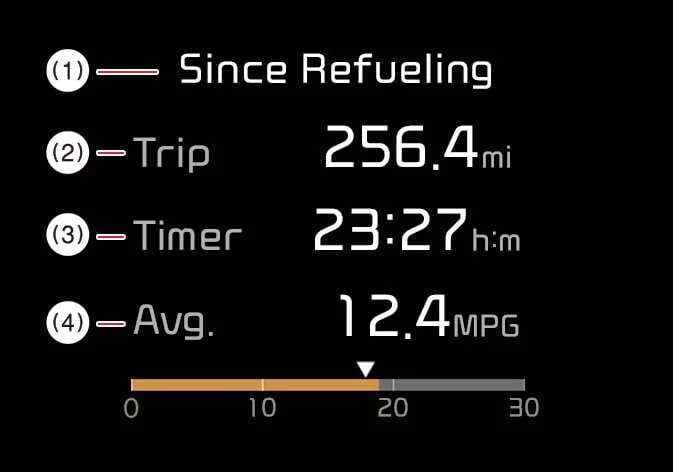

Information since refueling

Since Refueling Trip Timer Avg.

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

• After the vehicle runs for more than 0.19 miles (300 m), the information since refueling is calculated.

• If you press the “OK” button for more than 1 second after the information since refueling is displayed, the information is reset.

• When driving after refueling, the information is automatically reset.

• Information is accumulated when the engine is running, even if the vehicle is not in motion.

TIP

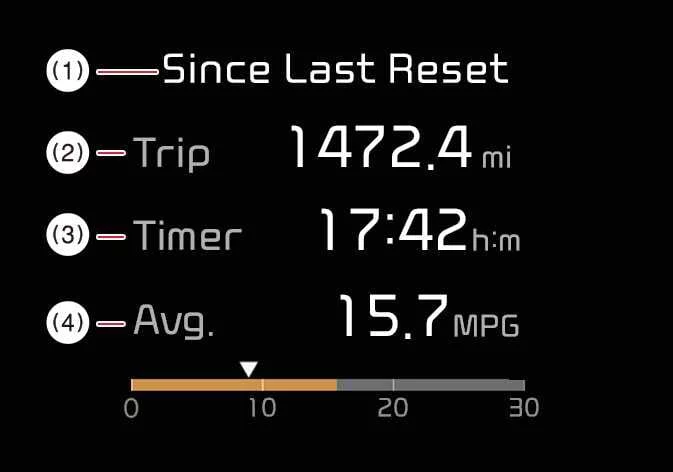

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

Since Last Reset Trip Timer Avg.

• After the vehicle runs for more than 0.19 miles (300 m), the Accumulated information is calculated.

• If you press the “OK” button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

• Information is accumulated when the engine is running, even if the vehicle is not in motion.

Other view modes

Master warning mode

This mode informs you of the following situations:

• Driver assistance system malfunction, limitation, or a radar or camera interference: (if equipped)

• LED headlamp malfunction

• Lamp malfunction

• TPMS (Tire Pressure Monitoring System) failure, low tire pressure, and so on.

The Master Warning icon ( ) will appear. If the warning situation resolves, the master warning light will turn off and the Master Warning icon will disappear.

Service mode

This mode reminds you of scheduled maintenance information.

(A) Service Interval

Service interval

The vehicle calculates and displays when you need a scheduled maintenance service (based on mileage or days).

If the remaining mileage or time reaches 900 miles (1,500 km) or 30 days, the “Service Interval” message displays for several seconds each time you turn the ENGINE START/STOP button to the ON position.

Service required

If you do not have your vehicle serviced according to the default service interval, the “Service required” message displays for several seconds each time you turn the ENGINE START/STOP button to the ON position.

TIP
