Kia Sorento: Interior Trim Components
Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Body (Interior and Exterior) / Exterior / Interior Trim Components

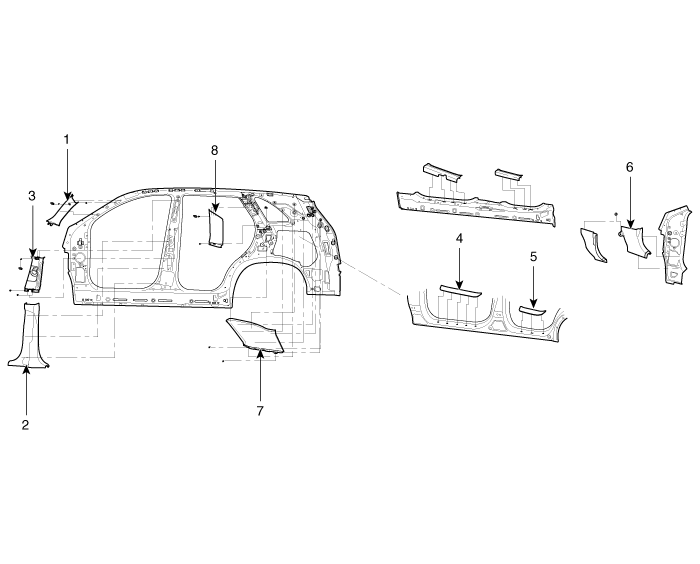

| 1. Front pillar trim 2. Center pillar lower trim 3. Center pillar upper trim 4. Front door scuff trim |
5. Rear door scuff trim 6. Cowlside trim 7. Rear pillar trim 8. C pillar trim |
Roof Trim Replacement
Sunvisor Replacement
1.
Remove the sunvisor cover (A).
2.
After loosening the mounting screws, then remove the sunvisor
(B) and retaine ...
Interior Trim Replacement
Door Scuff Trim Replacement
•
Put on gloves to protect your hands.
...
