Kia Sorento: Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

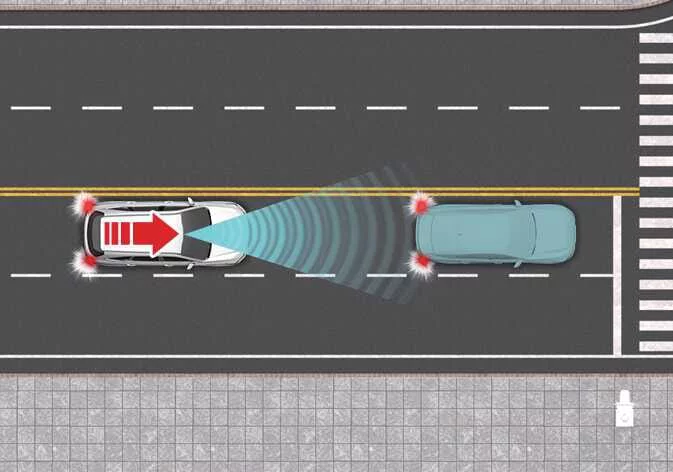

Basic function

The Forward Collision-Avoidance Assist system engineered for the Kia Sorento represents a sophisticated layer of active safety, utilizing advanced sensor fusion to continuously monitor the road environment ahead. This intelligent technology is capable of detecting preceding vehicles, motorcycles, pedestrians, and cyclists, instantly alerting the operator to a potential hazard through both clear visual warning messages on the instrument cluster and distinct acoustic signals. Beyond merely notifying the driver of impending risks, the Forward Collision-Avoidance Assist is fully equipped to actively apply emergency braking intervention when necessary, helping to significantly reduce impact velocity or potentially prevent a collision altogether during critical traffic scenarios.

Furthermore, this robust system extends its protective scope by tracking moving targets situated directly ahead as well as in adjacent lanes, operating effectively even at elevated highway speeds. Should the driver initiate a lane change under high-velocity conditions while an unrecognized or sudden hazard emerges, your Kia Sorento may autonomously engage emergency deceleration mechanisms to mitigate the severity of an impact or guide the vehicle away from danger (if equipped).

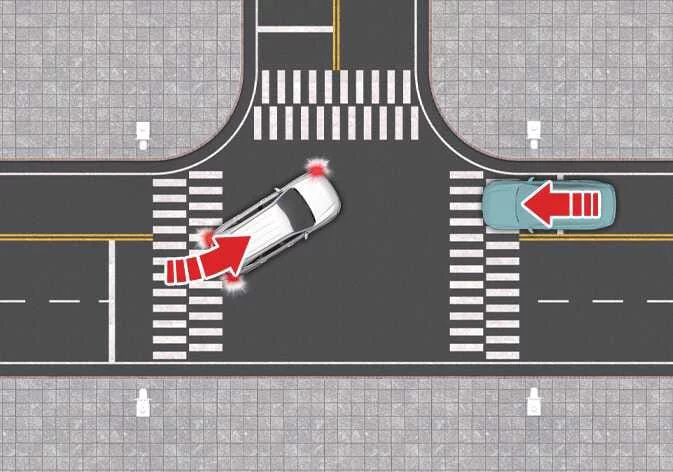

Junction Turning function

Navigating busy urban intersections becomes considerably more secure with the specialized Junction Turning feature integrated into your Kia Sorento. When you activate the turn signal and initiate a left turn across an active crossroad, this intelligent function constantly evaluates oncoming traffic paths. If an unexpected vehicle, motorcyclist, or cyclist suddenly appears in the opposing lane, the system can instantly deploy emergency braking assistance to help you steer clear of a dangerous intersection collision.

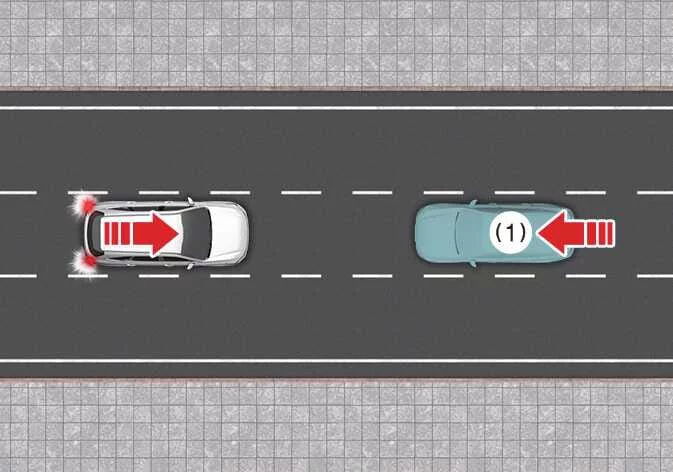

Direct Oncoming function

Oncoming vehicle

Designed to address high-risk frontal encounters, the Direct Oncoming function actively scans for vehicular traffic and motorcyclists drifting or traveling rapidly from the opposite direction. By calculating closure rates in real time, your Kia Sorento can instantly execute preemptive braking protocols to minimize kinetic energy and effectively reduce the severity of a head-on collision.

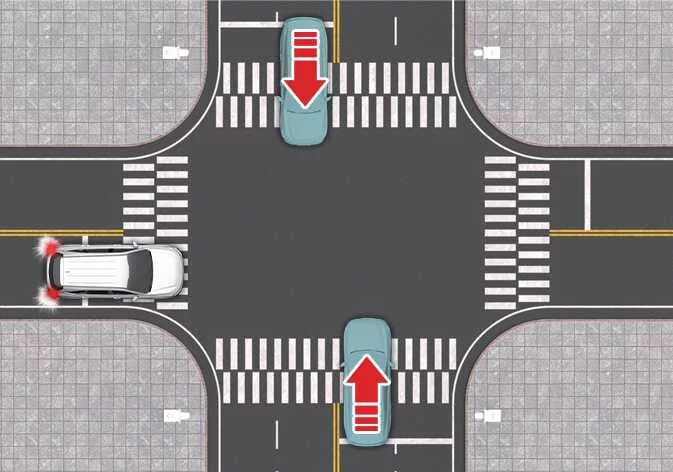

Junction Crossing function: (if equipped)

When proceeding straight through complex intersections where cross-traffic presents an unpredictable hazard, the Junction Crossing function provides an essential safety net for your Kia Sorento. The system is engineered to apply decisive emergency braking inputs if cross-traffic vehicles suddenly surge from your left or right flank, protecting occupants by mitigating or entirely avoiding a lateral impact.

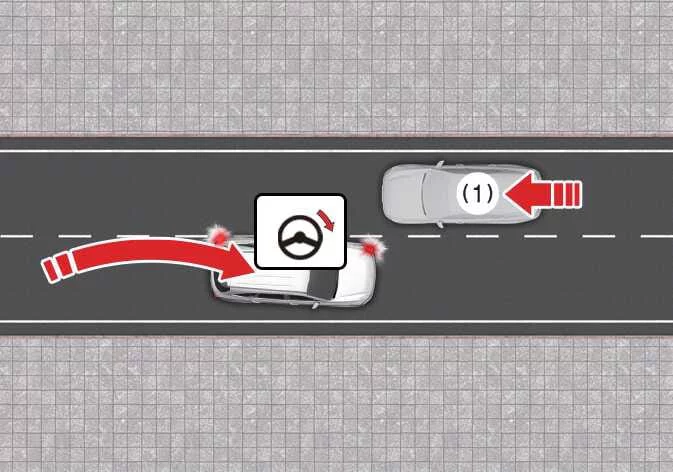

Lane-Change Oncoming function: (if equipped)

Oncoming vehicle

Executing passing maneuvers on multi-lane highways requires absolute precision. The Lane-Change Oncoming feature assists the driver of the Kia Sorento by monitoring adjacent paths for vehicles traveling in the opposite direction during a lane transition, providing corrective steering support to help avert a catastrophic frontal-angle collision.

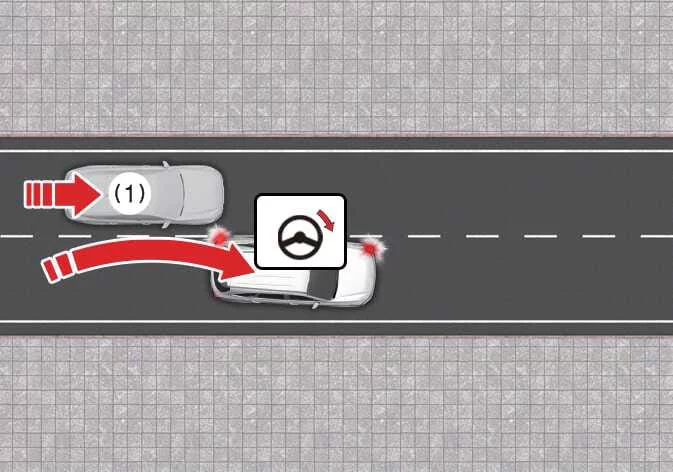

Lane-Change Side function: (if equipped)

1. Approaching car from side

Merging or shifting lanes in dense traffic is continuously monitored by the Lane-Change Side function. If another automobile or motorcyclist is detected occupying or closing rapidly into the target lane, your Kia Sorento can deliver responsive steering assistance to guide the vehicle back into safety and prevent a side-swipe collision.

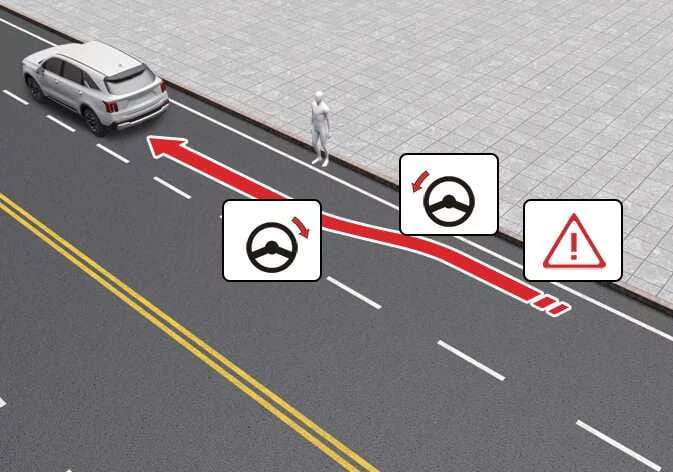

Evasive Steering Assist function: (if equipped)

• Driver Steering Assist

  When the vehicle detects an imminent obstacle or a potential collision with a stationary or moving vehicle, pedestrian, or cyclist directly in your path, Evasive Steering Assist actively supplements your steering inputs to help maneuver your Kia Sorento around the danger zone safely.

• Evasive Steering Assist

  This dedicated safety protocol is specifically optimized to mitigate or prevent accidents involving vulnerable road users like pedestrians and cyclists sharing your travel lane. If a high collision probability is calculated, the system issues immediate warnings and provides torque-assisted steering support the moment the driver initiates evasive wheel movement.

Detection sensor

Please refer to Detecting sensor(s) for the applicable sensors and their locations.

CAUTION

• Never damage or disassemble the detection sensor or sensor assembly.

• If the detection sensors have been replaced or repaired, have the vehicle inspected by an authorized Kia dealer.

• If the vehicle experiences an impact to or around the radar, Forward Collision-Avoidance Assist may not operate properly, even if the instrument cluster does not display a warning message. Visit an authorized Kia dealer.

• Never tint or install any accessories or stickers on the windshield.

• Be extremely careful to keep the front view camera dry.

• Never place any reflective objects (for example, white paper or a mirror) over the instrument cluster.

• Do not place any objects near or install any accessories on the windshield. This can affect the performance of the climate control system’s defogging and defrosting function, which may prevent the Driver Assistance systems from operating.

• Do not apply a license plate frame or objects (such as a bumper sticker, film, or a bumper guard), near the front radar cover.

• Always keep the front radar cover clean and free of dirt and debris.

  Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

• If you apply paint on or change the front, front corner and/or rear corner radar sensor cover, Forward Collision-Avoidance Assist may not function properly.

  Use only Kia genuine parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

• The function may not work properly if the bumper was replaced, or the surroundings of the front corner radar or rear corner radar were damaged or paint was applied.

• If you install a trailer or carrier, this may adversely affect the performance of Forward Collision-Avoidance Assist and prevent it from operating properly.
