Kia Sorento: Emergency Door Locking ProceduresIf the electrical power door lock switch becomes completely non-functional—such as when the Kia Sorento 12-volt battery is dead or drained—you cannot rely on standard central locking. In this scenario, the primary method to secure doors equipped with external key cylinders is by using the physical mechanical key blade extracted from inside your smart key fob.
For side doors that lack an external keyhole, you can manually lock them from the inner frame edge by following these steps:
Open the target door to expose the inner frame and locking access points.

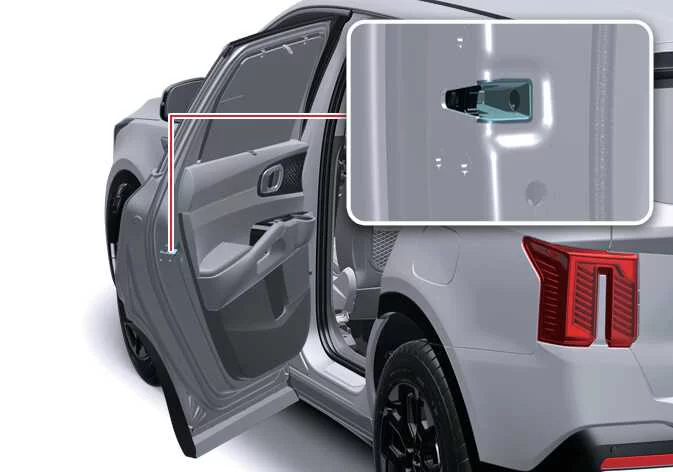

Insert your mechanical key blade or a small flat-head screwdriver directly into the designated emergency door lock slot, then rotate the mechanism firmly to the locked position as illustrated.
|
Close the door securely from the outside; the exterior handle will remain locked until power is restored or unlocked from within.
IMPORTANT NOTE ON LIFTGATE ACCESS
If electrical power to the door locking system is cut off due to a dead battery while the tailgate is closed, the electronic trunk latch will not function. You will be unable to open the liftgate from the outside until vehicle electrical power is fully restored or an emergency power source is connected.
