Kia Sorento: Downhill Brake Control (DBC). DBC operation
|
The Downhill Brake Control (DBC) feature equipped on your Kia Sorento helps you safely descend steep inclines without requiring you to constantly keep your foot pressed on the brake pedal.
The DBC system automatically modulates the hydraulic brakes to maintain a controlled vehicle speed between 2.5 mph (4 km/h) and 25 mph (40 km/h), allowing you to focus completely on precise steering as you drive down steep slopes.
Always turn OFF the DBC system when driving on normal, level roads. Leaving it active can cause inadvertent brake activation from standby mode when driving over speed bumps or executing sharp turns.
The DBC system automatically resets to the OFF state every time you cycle the ENGINE START/STOP button to the ON position.
You may hear mechanical hydraulic noise or feel slight pedal vibration when the DBC system is actively braking your vehicle. Additionally, the rear brake lights will illuminate automatically whenever DBC is engaged.
DBC operation
|
Mode |
Indicator light |
Description |
|---|---|---|
|
Standby |
lit |

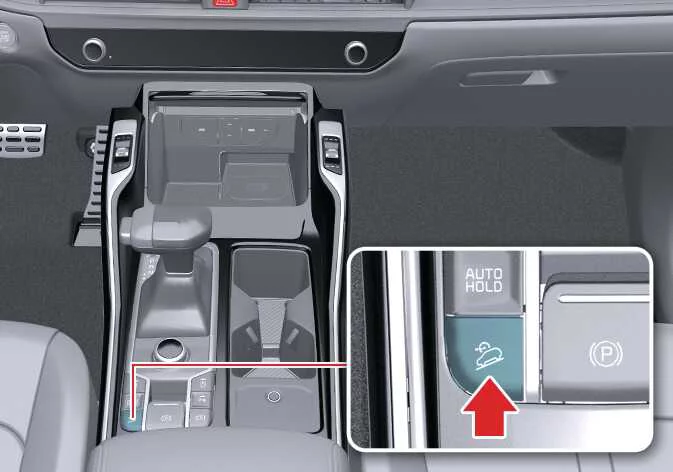

Press the DBC button when your Kia Sorento is traveling at a speed below 38 mph (60 km/h). The Downhill Brake Control system turns ON in standby mode, ready to assist you on steep descents. The system will not engage if the vehicle speed exceeds 38 mph (60 km/h) when the button is pressed. |
|
Activated |
blinking |
The Downhill Brake Control system automatically transitions from standby mode into active operating mode when specific driving conditions are met:
When the vehicle speed remains within the 2.5 mph (4 km/h) to 25 mph (40 km/h) range during an active descent, you retain the ability to fine-tune your speed by gently pressing either the accelerator or brake pedal. |
|
Temporarily deactivated |
lit |
The Downhill Brake Control system temporarily pauses its active intervention under the following circumstances:
Once these temporary conditions clear and normal descent parameters resume, the Downhill Brake Control system automatically reactivates itself. |
|
OFF |
unlit |
The Downhill Brake Control system powers completely OFF when any of the following actions occur:
|
|
Overheated or Malfunctioned |
yellow |
If the Downhill Brake Control indicator light turns solid yellow, the braking hardware may have experienced temporary overheating due to extended use or a system malfunction. If this warning light persists even after the system has fully cooled down, schedule an immediate inspection of your Kia Sorento with an authorized dealer. |
NOTE
-
The Downhill Brake Control system may occasionally remain engaged on exceptionally steep inclines, even if you depress the brake or accelerator pedals.
-
The Downhill Brake Control system will not operate under specific operational states:
-
The transmission gear selector is shifted into P (Park).
-
The Electronic Stability Control (ESC) is currently active and intervening.
-
-
If the Downhill Brake Control indicator light illuminates in yellow, the system may be overheated or experiencing an electrical fault. If the warning persists after cooling, have your vehicle checked by an authorized Kia service center without delay.
