Kia Sorento: Console Components - Exterior - Body (Interior and Exterior) - Kia Sorento XM 2011-2026 Service ManualKia Sorento: Console Components

Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Body (Interior and Exterior) / Exterior / Console Components

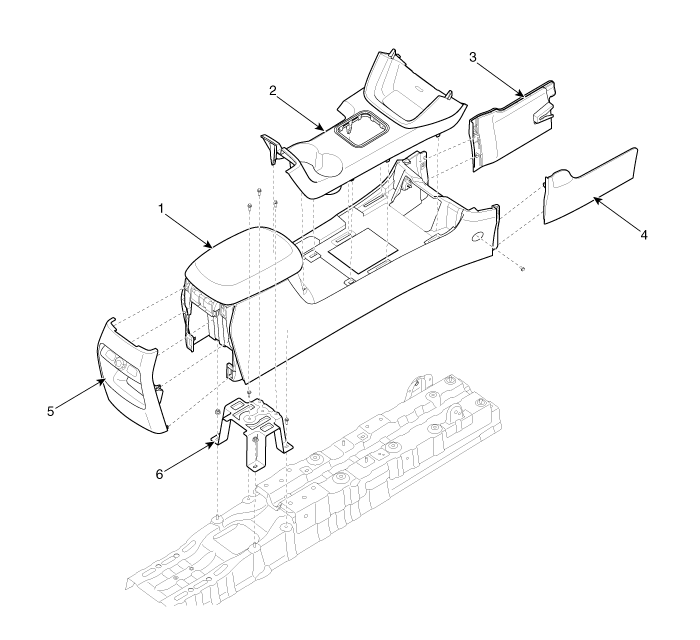

[M/T]

1. Floor console assembly
2. Console upper cover
3. Console side cover [LH]
 4. Console side cover [RH]
5. Rear console cover
6. Floor console mounting bracket

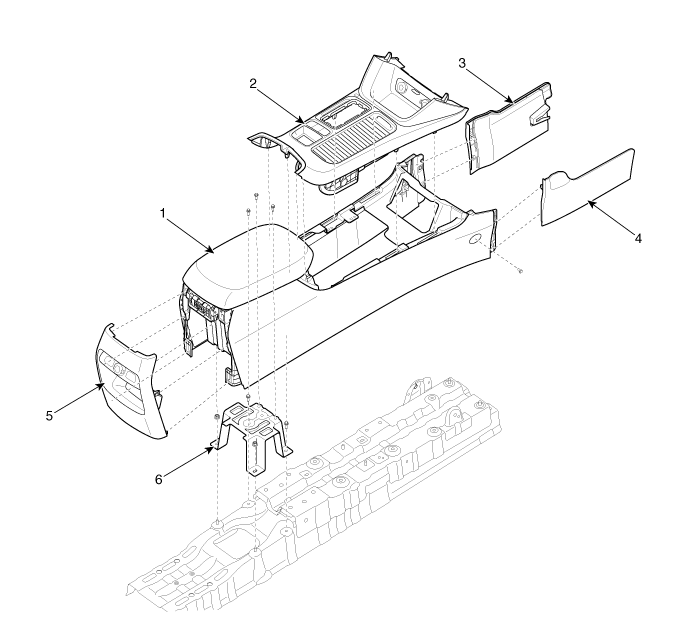

[A/T]

1. Floor console assembly
2. Console upper cover
3. Console side cover [LH]
 4. Console side cover [RH]
5. Rear console cover
6. Floor console mounting bracket

Cowl Top Cover Replacement
1. Remove the cap (A) and remove the nuts, then remove the wiper arm (B). Tightening torque : 22.6 ~ 26.5 N.m(2.3 ~ 2.7 kgf.m, 16.6 ~ ...

Console Replacement
Floor Console Assembly Replacement    • Pry the trim off using a plastic trim tool and apply ...
