Kia Sorento: Components - ESC(Electronic Stability Control) System - Brake System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: Components

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Brake System / ESC(Electronic Stability Control) System / Components

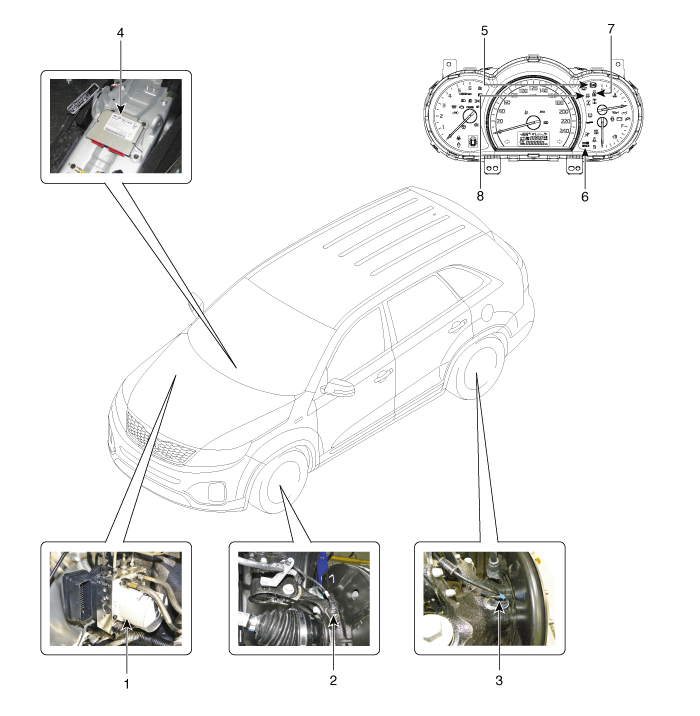

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral G sensor
5. ABS Warning lamp
6. Parking brake/EBD warning lamp
7. ESC Function/Warning lamp
8. ESC OFF lamp

ESC(Electronic Stability Control) System
...

Description of ESC
Electronic Stability Control (ESC) recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-individual braking and engine c ...
