Kia Sorento: Component Location
Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Body Electrical System / Horn / Component Location

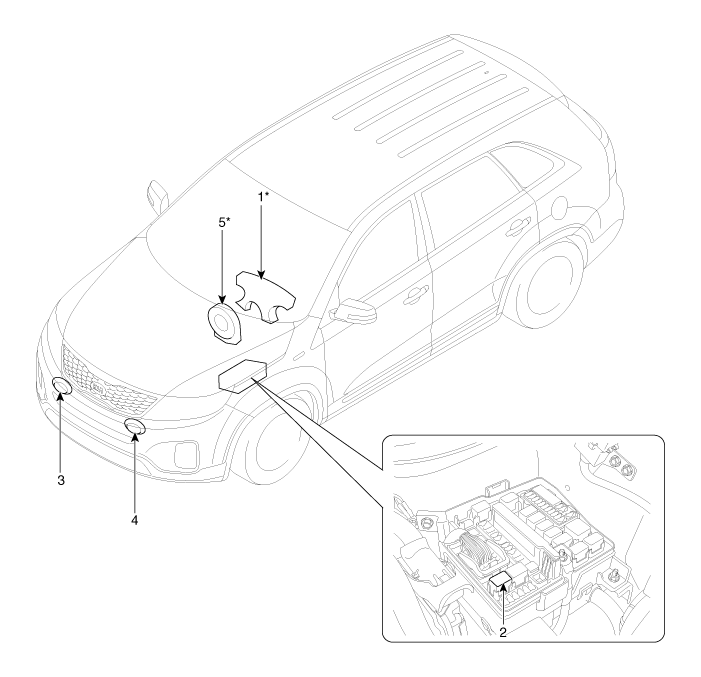

| 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn (Low pitch) |
4. Horn (High pitch) 5. Clock spring |
Horn
...
Removal
1.
Remove the head lamp.
(Refer to "Lighting system")
2.
Remove the bolts and disconnect the horn connectors, then remove
...
