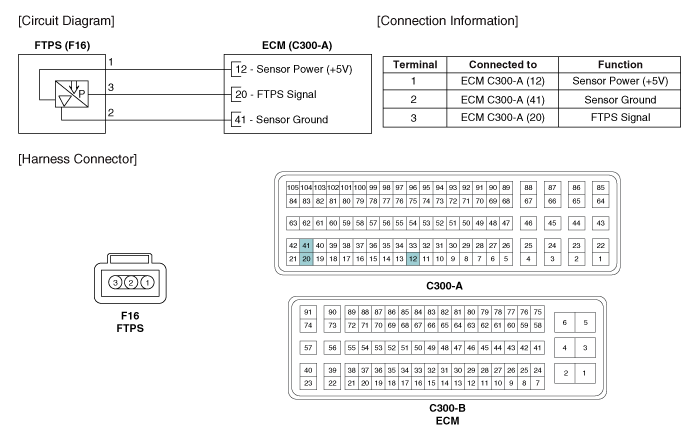

Kia Sorento: Circuit Diagram - Fuel Tank Pressure Sensor (FTPS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Tank Pressure Sensor (FTPS) / Circuit Diagram

Specification
Pressure [kPa (kgf/cm², in H2O) Output Voltage (V) -3.75 (-0.038, -15.05) 4.5 0 1.5 +1.25 (0.013, 5.02) 0.5 ...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specification: ...
