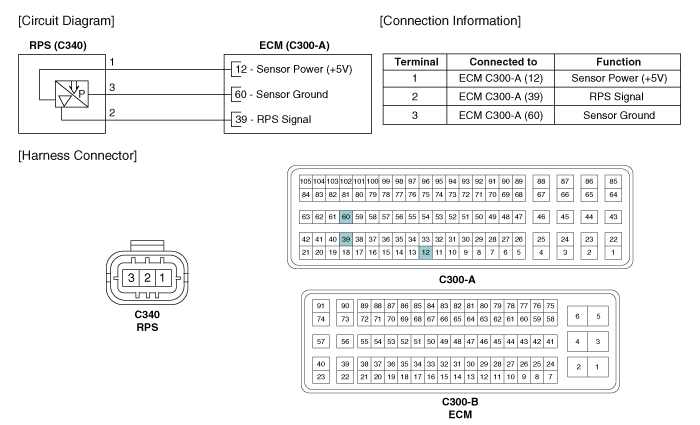

Kia Sorento: Circuit Diagram - Rail Pressure Sensor (RPS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Rail Pressure Sensor (RPS) / Circuit Diagram

Signal Waveform
...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine speed. ...
