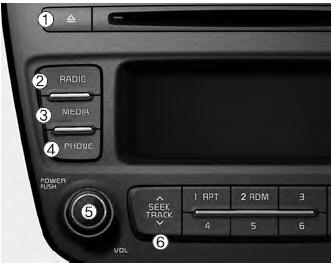

(1)
(EJECT)
Ejects the disc.
(2)
Changes to FM/AM/SIRIUS mode.
Each time the key is pressed, the mode is changed in order of FM1 ➟ FM2 ➟ AM ➟ SAT1 ➟ SAT2 ➟ SAT3.
❈ In Setup>Display, the radio pop up screen will be displayed when [Mode Pop
up] is turned
.
When the pop up screen is displayed, use the
TUNE knob or
keys ~
to select the desired mode.
(3)
Changes to CD, USB(iPod®), AUX, My Music, BT Audio mode.
Each time the key is pressed, the mode is changed in order of CD, USB(iPod®), AUX, My Music, BT Audio.
❈ In Setup>Display, the media pop up screen will be displayed when [Mode Pop
up] is turned
.
When the pop up screen is displayed, use the
TUNE knob or
keys ~
to select the
desired mode.
(4)
Operates Phone Screen
❈ When a phone is not connected, the connection screen is displayed.
(5) PWR/VOL knob
Power :
Turns power On/Off by pressing the knob
Volume :
Sets volume by turning the knob left/right
(6)
Radio Mode : Automatically searches for broadcast frequencies.
CD, USB, iPod®, My Music modes
- Shortly press the key (under 0.8 seconds): Moves to next or previous song (file)
- Press and hold the key (over 0.8 seconds): Rewinds or fast-forwards the current song.
BT Audio mode : Moves to next or previous song(file)
❈ The Play/Pause feature may operate differently depending on the mobile phone.

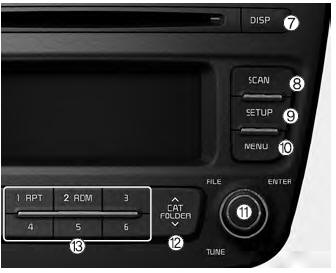

(7)
Each time the button is shortly pressed (under 0.8 seconds), it sets the screen Off ➟ Screen On ➟ Screen Off
❈ Audio operation is maintained and only the screen will be turned Off. In the screen Off state, press any key to turn the screen On again.
(8)
Radio Mode
- Shortly press the key : Previews each broadcast for 5 seconds each.
- Press and hold the key (over 0.8 seconds): Previews the broadcasts saved in
Preset ~
for 5
seconds each.
❈ Press the
key again to continue listening to the current frequency.
❈ SAT Radio does not support the Preset scan feature.
CD, USB, My Music mode
Shortly press the key (under 0.8 seconds): Previews each song (file) for 10 seconds each.
❈ Press the
key again to continue listening to the current song (file).
(9)
Moves to the Display, Sound, Phone, System setting modes.
(10)
Displays menus for the current mode.
❈ iPod® List : Move to parent category
(11) TUNE
knob
Radio mode : Changes frequency by turning the knob left/right.
CD, USB, iPod®, My Music mode: Searches songs (files) by turning the knob left/right.
❈ When the desired song is displayed, press the knob to play the song.
Moves focus in all selection menus and selects menus.
(12)
Radio Mode
SIRIUS RADIO : Category Search
MP3, CD, USB mode : Folder Search
(13) ~
(Preset)
Radio Mode: Saves frequencies (channels) or receives saved frequencies (channels)
CD, USB, iPod®, My Music mode
- :Repeat
- :Random
In the Radio, Media, Setup, and Menu pop up screen, the number menu is selected.
