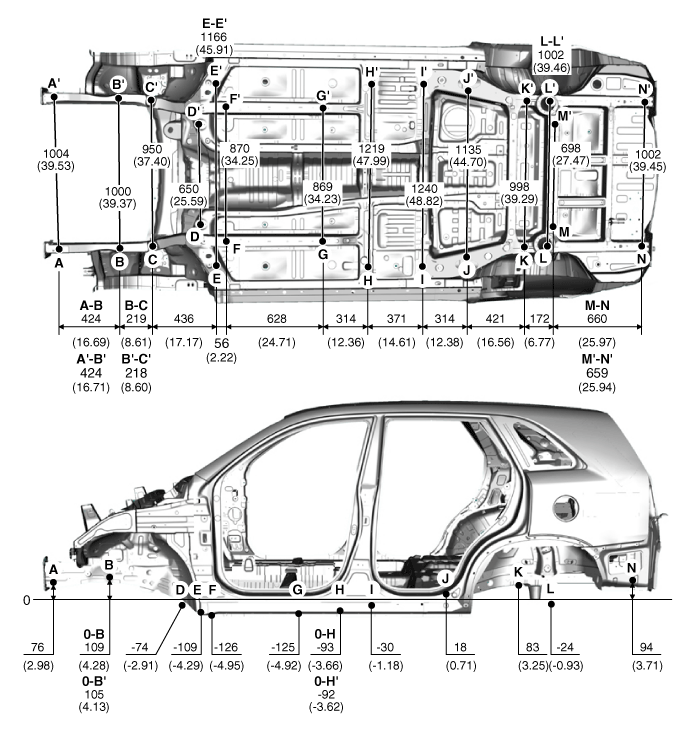

Projected Dimensions

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

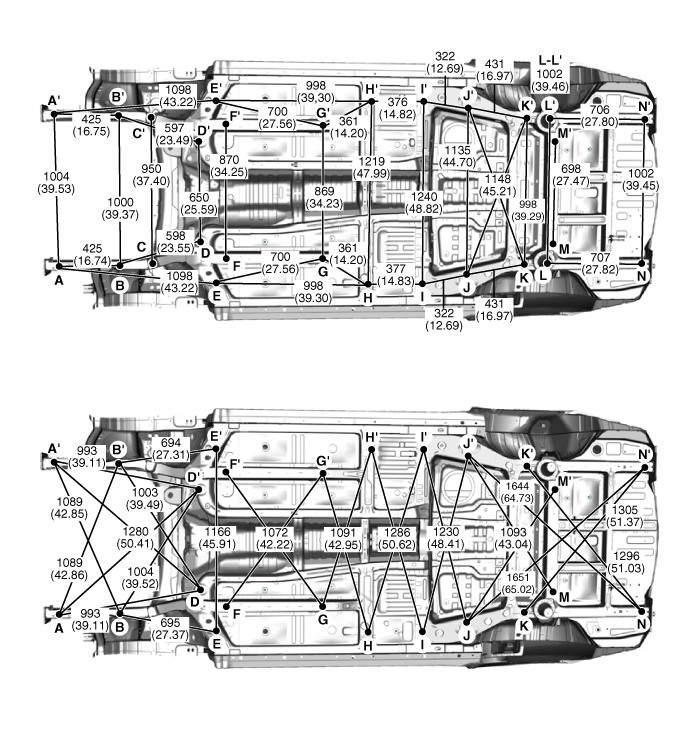

Actual-Measurement Dimensions

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front side member tooling hole (Ø25)

Front side member tooling hole (Ø25)

Side cover mounting hole (Ø11)

Side cover mounting hole (Ø11)

Front sub frame mounting bolt

Front sub frame mounting hole (Ø18)

Floor under cover mounting hole
(Ø6.6)
Front sub frame mounting hole (Ø11)

Front side member tooling hole
(Ø14)

Floor under cover mounting hole (Ø7)

Floor under cover mounting hole (Ø7)

Rear trailing arm mounting hole (Ø19)


Rear sub frame mounting hole (Ø22)

Rear spring mounting hole (Ø9)

Rear sub frame mounting bolt



Rear floor side member tooling hole
(Ø14)
