Kia Sorento: Timing Chain Components - Timing System - Engine Mechanical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Timing Chain Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components

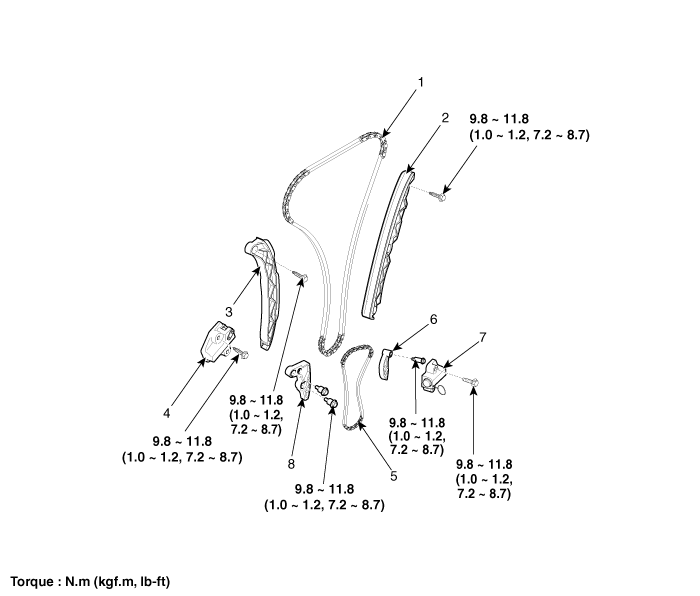

1. Timing chain
2. Timing chain guide
3. Timing chain tension arm
4. Timing chain tension
5. Balance shaft chain
6. Balance shaft chain tension arm
7. Balance shaft chain tension
8. Balance shaft chain guide

Timing Chain Cover Installation
1. Install the timing chain cover. (1) Using a gasket scraper, remove all the old packing material from the gasket surfaces. ...

Timing Chain Removal
1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the crankshaft pulley and ...
