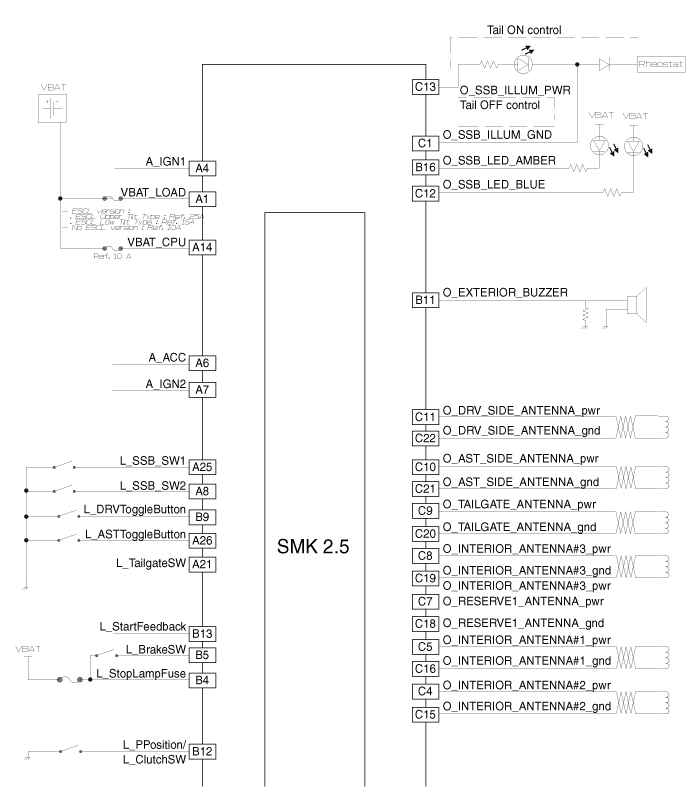

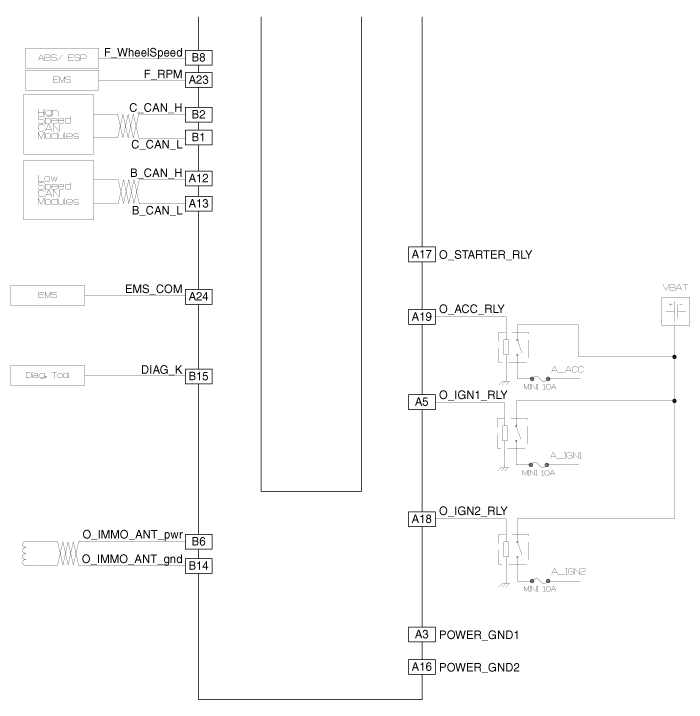

Kia Sorento: Smart key unit Circuit Diagtam - Smart key System - Body Electrical System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Smart key unit Circuit Diagtam

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Body Electrical System / Smart key System / Smart key unit Circuit Diagtam

Smart key unit Components
Connector Pin Information No. Connector A Connector B Connector C 1 V_BAT load C_CAN Low SSB illumination ground 2 ...

Smart key unit Removal
Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing (A). (Refer to Body - "Crash pa ...
