Kia Sorento: Shift Lever Components - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Shift Lever Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Shift Lever Components

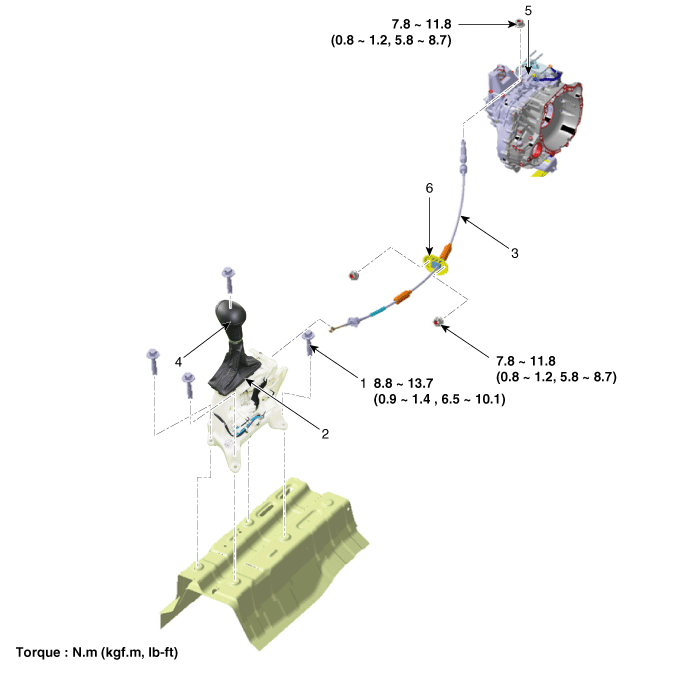

1. Shift lever mounting bolt
2. Shift lever assembly
3. Shift cable assembly
4. Shift lever knob & boots assembly
5. Manual control lever
6. Retainer

Installation
1. Check that the shift lever is placed in the "N" position 2. Install the inhibitor switch (A). ...

Shift Lever Removal
1. Remove the floor console. (Refer to Body - "Floor console") 2. Remove the air duct. 3. Dis ...
