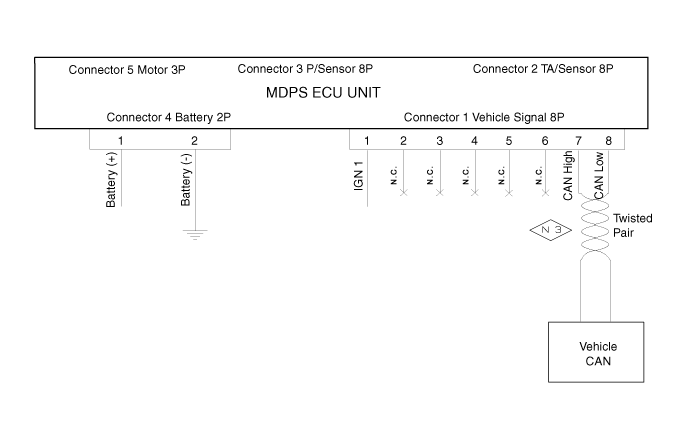

MDPS Circuit Diagram

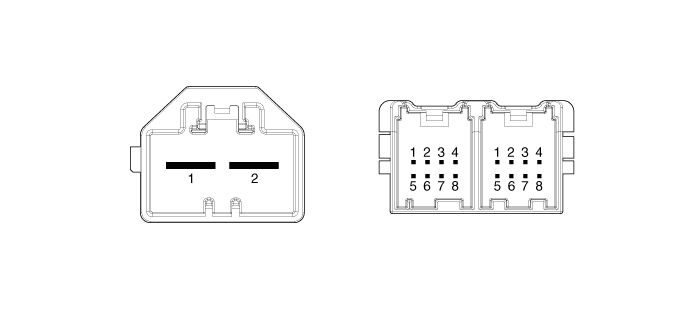

Harness Connector

Connector
Pin no
Pin name
Battery
1
Battery +
2
Battery -
Vehicle signal
1
Igntion
2
-
3
-
4
-
5
-
6
-
7
CAN_High
8
CAN_Low

Components
1. Steering column shaft 2. ECU 3. Motor 4. Steering gear box ...

General Inspection
After or before servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symp ...
