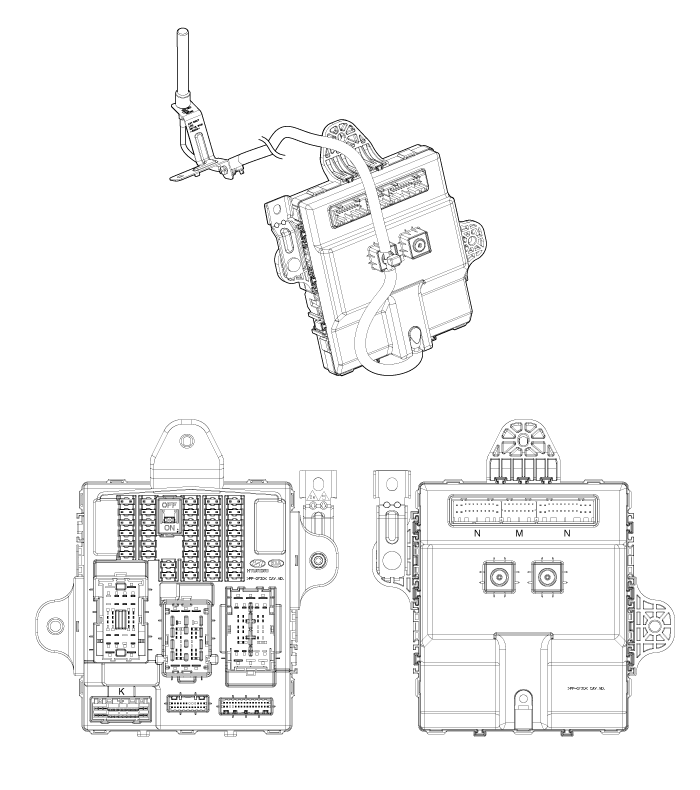

Kia Sorento: IPM Components - BCM (Body Control Module) - Body Electrical System - Kia Sorento XM 2011-2025 Service ManualKia Sorento: IPM Components

Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Body Electrical System / BCM (Body Control Module) / IPM Components

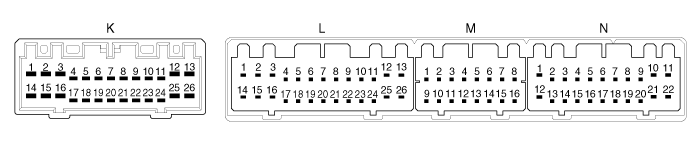

Outer Connector (L / M / N / K)
Connector
 Pin No.
 Description
 Active
 Remark
K
 1
 IMS LIN
 　
 　
2
 Master LIN
 　
 　
3
 PAS LIN
 　
 　
4
 Power window lock switch
 Low
 Input
5
 Power window unlock switch
 Low
 Input
6
 Driver door switch
 Low
 Input
7
 Assist door switch
 Low
 Input
8
 Rear left door switch
 Low
 Input
9
 Rear right door switch
 Low
 Input
10
 Driver door key lock switch
 Low
 Input
11
 Driver door key unlock switch
 Low
 Input
12
 Parking brake switch
 Low
 Input
13
 Tailgate outside handle switch
 Low
 Input
14
 -
 　
 　
15
 -
 　
 　
16
 -
 　
 　
17
 Driver door actuator unlock switch
 Low
 Input
18
 Assist door actuator unlock switch
 Low
 Input
19
 Rear left door actuator unlock switch
 Low
 Input
20
 Rear right door actuator switch
 Low
 Input
21
 Driver seat belt switch
 Low
 Input
22
 Assist seat belt switch
 Low
 Input
23
 -
 　
 　
24
 Tailgate open switch
 Low
 Input
25
 Hood switch
 Low
 Input
26
 Pocket lamp
 High
 Output
L
 1
 Room lamp
 Low
 Output
2
 Head lamp RH HID
 Low
 Output
3
 Key solenoid
 Low
 Output
4
 MTS Tx
 Low
 Output
5
 Rear left seat warmer relay
 Low
 Output
6
 Driver door unlock relay
 Low
 Output
7
 Head lamp washer
 Low
 Output
8
 Burglar alarm horn
 Low
 Output
9
 Key hole illumination
 Low
 Output
10
 RPAS buzzer
 Low
 Output
11
 PAS OFF indicator
 High
 Output
12
 Auto light power
 　
 Output
13
 Auto light sensor
 AD
 Input
14
 Sun roof Tx
 　
 Output
15
 -
 　
 　
16
 Rear wiper relay
 Low
 Output
17
 Rear fog lamp relay
 Low
 Output
18
 Horn relay
 Low
 Output
19
 Rear right seat warmer relay
 Low
 Output
20
 Wiper low
 Low
 Output
21
 AV tail
 Low
 Output
22
 Tailgate latch
 Low
 Output
23
 Head lamp low control
 Low
 Output
24
 Assist seat belt indicator
 Low
 Output
25
 Rear fog lamp switch
 Low
 Input
26
 Auto ligth ground
 GND
 　
M
 1
 Rear left seat warmer switch
 Low
 Input
2
 Rear right warmer switch
 Low
 Input
3
 C CAN low
 Data
 　
4
 C CAN High
 Data
 　
5
 B CAN high
 Data
 　
6
 B CAN low
 Data
 　
7
 K Line
 　
 　
8
 MTS Rx
 　
 Input
9
 -
 　
 　
10
 Hazard switch
 Low
 Input
11
 Key IN
 Low
 Input
12
 Tail switch
 　
 　
13
 Crash unlock
 　
 Input
14
 R position
 High
 Input
15
 Auto light switch
 Low
 Input
16
 Head lamp low switch
 Low
 Input
N
 1
 Wiper intermittent volume
 AD
 Input
2
 PTG option
 Low
 Input
3
 HID option
 Low
 Input
4
 MT option
 Low
 Input
5
 Head lamp high switch
 Low
 Input
6
 Front fog switch
 Low
 Input
7
 DRL option
 Low
 Input
8
 Defroster switch
 Low
 Input
9
 Brake fuild switch
 High
 Input
10
 Trunk lamp switch - LH
 Low
 Input
11
 Trunk lamp switch - RH
 Low
 Input
12
 Power ground
 GND
 　
13
 Sun roof RX
 　
 Input
14
 P position
 Low
 Input
15
 PAS OFF switch
 Low
 Input
16
 Rear intermittent switch
 High
 Input
17
 Rear wiper switch
 High
 Input
18
 Wiper intermittent switch
 High
 Input
19
 Washer mist switch
 High
 Input
20
 Washer switch
 High
 Input
21
 Rear washer switch
 High
 Input
22
 Signal ground
 GND
 Input

IPM Specifications
Items Specifications Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -30°C ~ 75°C (-4°F ~ 158°F) ...

IPM Circuit Diagram
...
