Kia Sorento: Rear Driveshaft Components - Rear Driveshaft Assembly - Driveshaft and axle - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Rear Driveshaft Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Driveshaft and axle / Rear Driveshaft Assembly / Rear Driveshaft Components

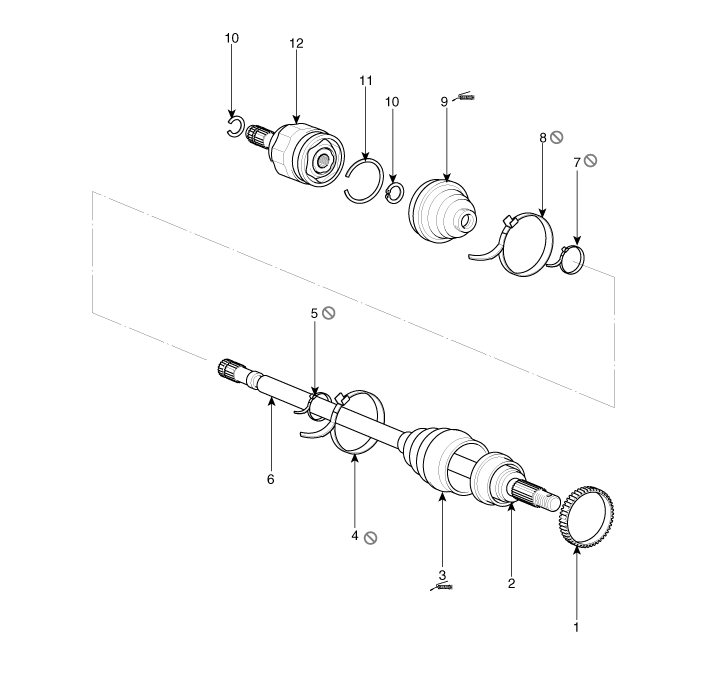

1. Tone wheel
2. BJ joint
3. BJ boot
4. BJ boot big part band
5. BJ boot small part band
6. Shaft
7. TJ boot small part band
8. TJ boot big part band
9. TJ boot
10. Snap ring
11. Circlip
12. TJ assembly

Rear Driveshaft Assembly
...

Rear Driveshaft Removal and Installation
1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
