Kia Sorento: Rear Door Components - Exterior - Body (Interior and Exterior) - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Rear Door Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body (Interior and Exterior) / Exterior / Rear Door Components

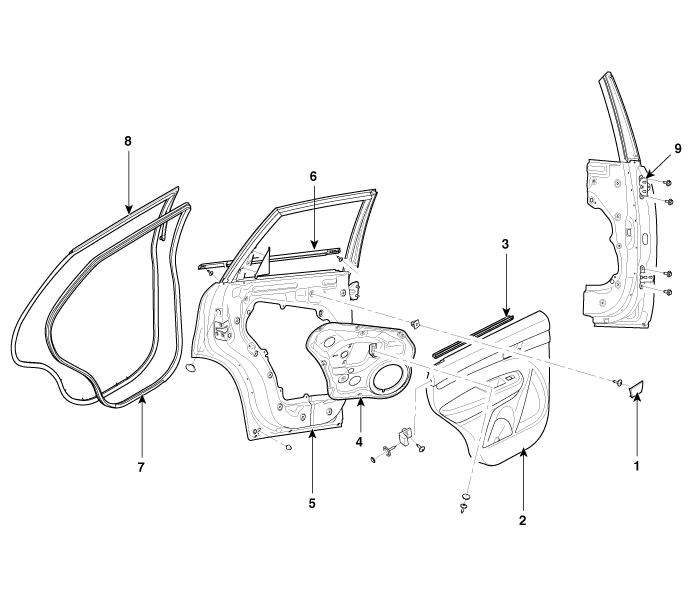

1. Door inside handle cap
2. Door trim
3. Door belt inner weatherstrip
4. Door module
5. Door panel
6. Door belt weatherstrip
7. Door body side weatherstrip
8. Door side weatherstrip
9. Door hinge

1. Door module
2. Door checker
3. Door Striker
4. Door outside handle
5. Door delta moulding
6. Door rear channel
7. Door outside handle cover
8. Door outside handle pad
9. Window glass
10. Power window motor
11. Door speaker

Front Door Adjustment
Glass Adjustment    Х Check the glass run channel for damage or deterioration, and repl ...

Rear Door vReplacement
Door Trim Replacement    Х When prying with a flat-tipped screwdriver, wrap it with pro ...
