Kia Sorento: Rear Differential Carrier Component - Differential Carrier Assembly - Driveshaft and axle - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Rear Differential Carrier Component

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Driveshaft and axle / Differential Carrier Assembly / Rear Differential Carrier Component

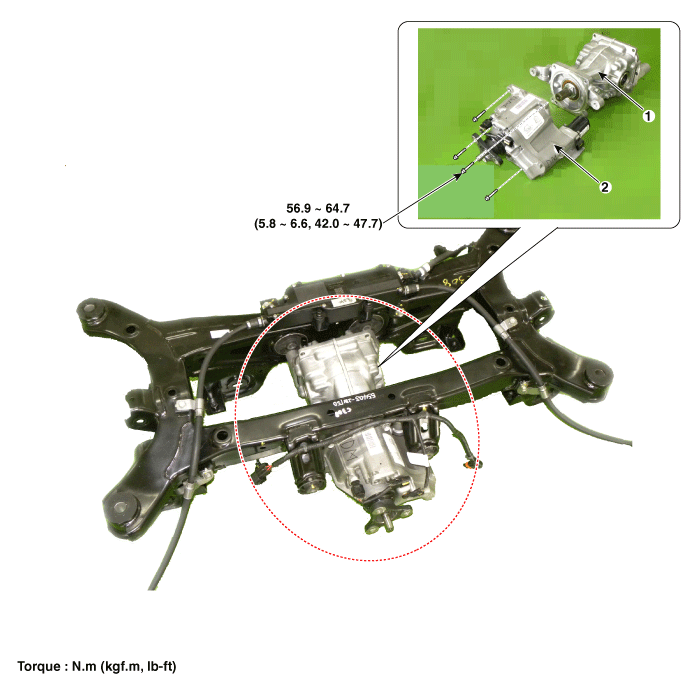

1. Rear Differential Carrier
2. Coupling Assembly

Differential Carrier Assembly
...

Rear Differential Carrier Removal
1. Remove the rear wheel and tire (A) from rear hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
