Kia Sorento: Power Tailgate Unit Circuit Diagram - Power Tailgate Module - Body Electrical System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Power Tailgate Unit Circuit Diagram

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit Circuit Diagram

Troubleshooting
Diagnosis And Testing - Power Tailgate System The power Tailgate system is a complex system containing many components. In order to perform conclusive testing, or receive outputs the power T ...

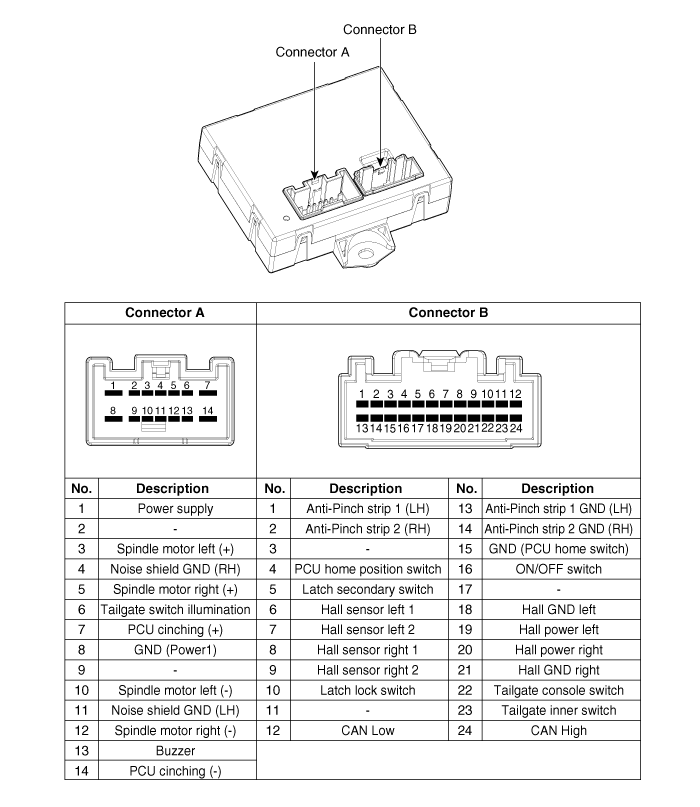

Power Tailgate Unit Block Diagram
...
