Kia Sorento: Panorama Sunroof Switch Components - Panorama Sunroof - Body Electrical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Panorama Sunroof Switch Components

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch Components

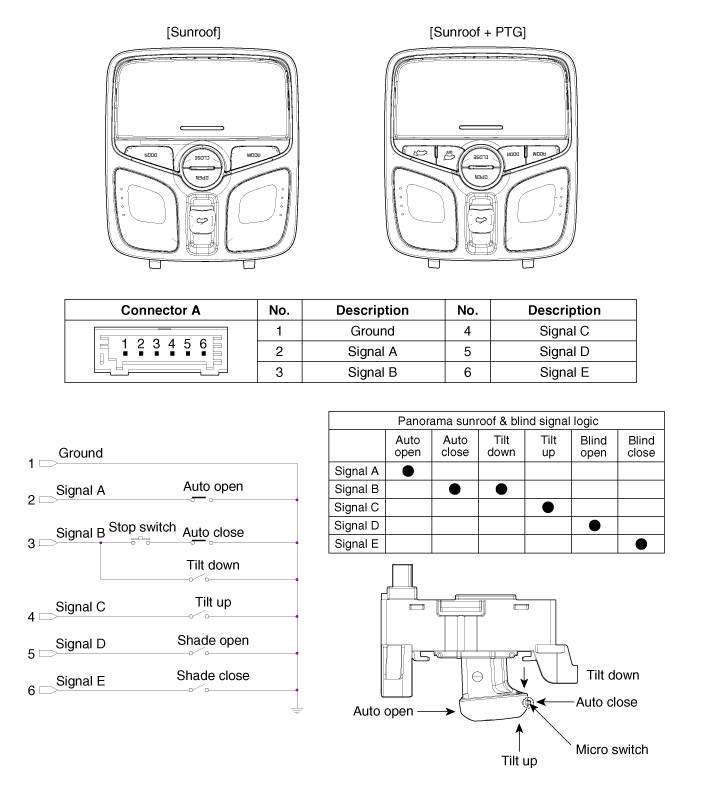

Circuit Diagram
Connector Pin Information No. Wire harness connector Panorama motor Blind motor 1 Ground 1 ...

Panorama Sunroof Switch Inspection
1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the 2 screws holding ...
