The LCD display modes can be changed by using the control buttons on the steering


The LCD display modes can be changed by using the control buttons on the steering wheel.

[Type A]

(1)  TRIP button for changing trip modes :


TRIP button for changing trip modes

(2) RESET button for resetting items :


RESET button for resetting items

❈ For the LCD modes, refer to LCD Display in this chapter.

[Type B]

(1) MODE button for changing modes or SELECT button for setting the selected item :


MODE button for changing modes or SELECT button for setting the selected item

(2)  MOVE button for changing items or RESET button for resetting the selected item:


MOVE button for changing items or RESET button for resetting the selected item

Gauges

Speedometer

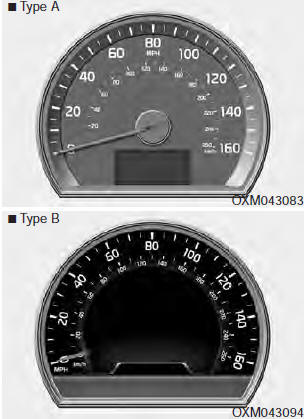

The speedometer indicates the speed of the vehicle and is calibrated in miles


The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h).

Tachometer

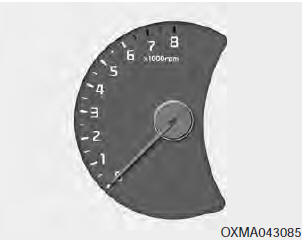

The tachometer indicates the approximate number of engine revolutions per minute


The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Engine Coolant Temperature Gauge

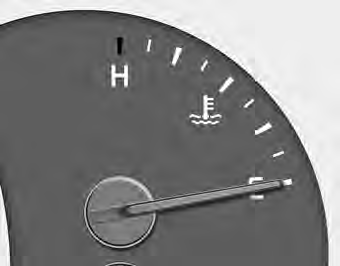

This gauge indicates the temperature of the engine coolant when the ignition


This gauge indicates the temperature of the engine coolant when the ignition switch or Engine Start/Stop button is ON.

CAUTION

If the gauge pointer moves beyond the normal range area toward the H position, it indicates overheating that may damage the engine. Do not continue driving with an overheated engine.

WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.

Fuel Gauge

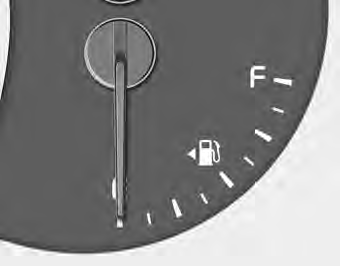

This gauge indicates the approximate amount of fuel remaining in the fuel tank.


This gauge indicates the approximate amount of fuel remaining in the fuel tank.

✽ NOTICE

WARNING - Fuel Gauge

Running out of fuel can expose vehicle occupants to danger. You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the E (Empty) level.

CAUTION

Avoid driving with a extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

✽ NOTICE

Fuel display may not be accurate if you are filling in sloping places.

Odometer

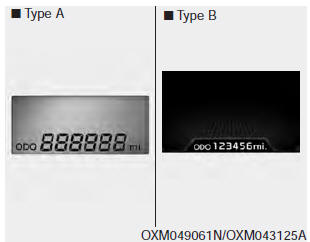

The odometer Indicates the total distance that the vehicle has been driven and


The odometer Indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

Odometer range : 0 ~ 999999 miles or kilometers.

Outside Temperature Gauge

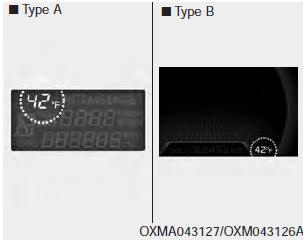

This gauge indicates the current outside air temperatures by 1F (1C).


This gauge indicates the current outside air temperatures by 1F (1C).

Temperature range : -40F ~ 140F (-40C ~ 60C)

The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

To change the temperature unit (from C to F or from F to C)

Type A Cluster

Press the RESET (and then press the Trip ( ) button 5 ) button 5 times
and then press the Trip ( times within 10 seconds.) button 5
times within 10 seconds.

Type B Cluster

The temperature unit can be changed by using the "User Settings" mode of the LCD display.

❈ For more details, refer to LCD Display in this chapter.

Transaxle Shift Indicator

Automatic Transaxle Shift Indicator (if equipped)

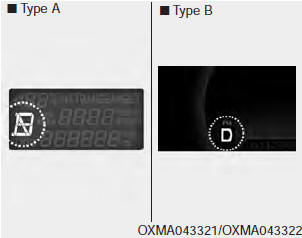

This indicator displays which automatic transaxle shift lever is selected.


This indicator displays which automatic transaxle shift lever is selected.

Instrument cluster
1. Tachometer 2. Speedometer 3. Engine coolant temperature gauge 4. Fuel gauge 5. LCD display 6.Warning and indicator lights (if equipped) 7. Turn signal indicator lights Instrument Cluster ...

Lcd display (If equipped)
...
