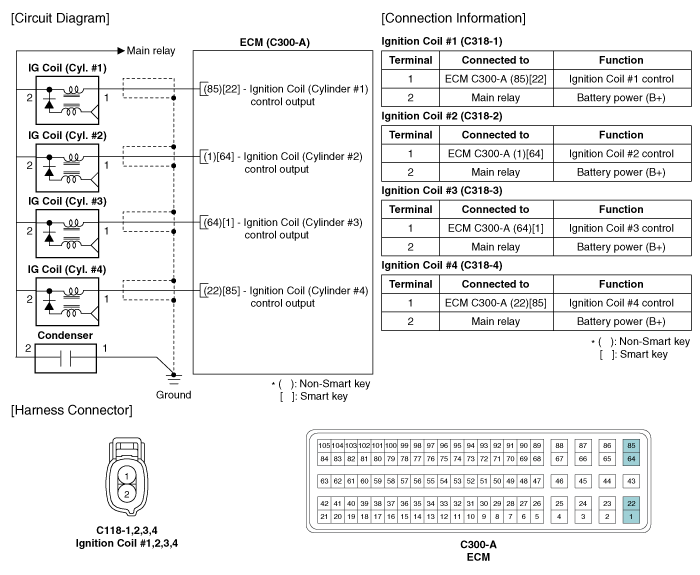

Kia Sorento: Ignition Coil Circuit Diagram - Ignition System - Engine Electrical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Ignition Coil Circuit Diagram

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Circuit Diagram

Ignition Coil Specification
Item Specification Primary Coil Resistance (Ω) 0.62 ± 10% [20°C (68°F)] Secondary Coil Resistance (kΩ) 7.0 ± 15% [20°C ( ...

Ignition Coil Removal
1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the ignition coil connec ...
