Kia Sorento: Diagnosis With GDS - Blind Spot Detection System - Body Electrical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: Diagnosis With GDS

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / Blind Spot Detection System / Diagnosis With GDS

1.
BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis.
2.
Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
3.
Select the vehicle model and then BSD system.
4.

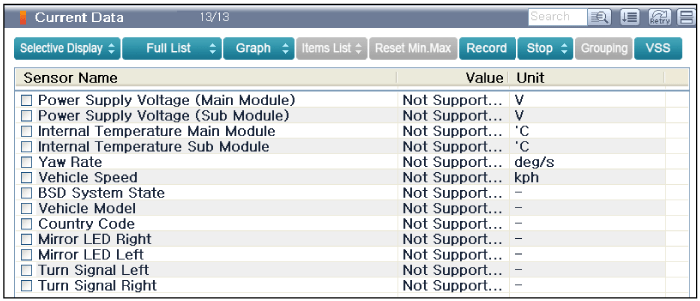

Select "Input/output monitoring", if you want to check current data of BSD system.

5.

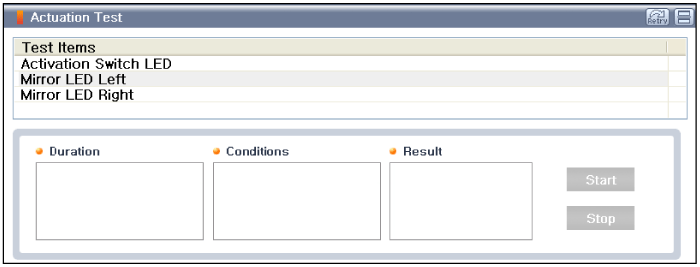

If you want to check each module operation forcefully, select "Actuation test".

Description
BSD is a system that uses two magnetic wave radar sensors attached on the rear bumper to measure the distance from the following vehicles and provides the sensing and (visual and auditory) al ...
